Fiche technique
- Fabricant : AJH Synth
- Modèle : Transistor Ladder Filter
- Série : MiniMOD
- Catégorie : Modules de filtres pour synthés modulaires
- Fiche créée le : 16/04/2015

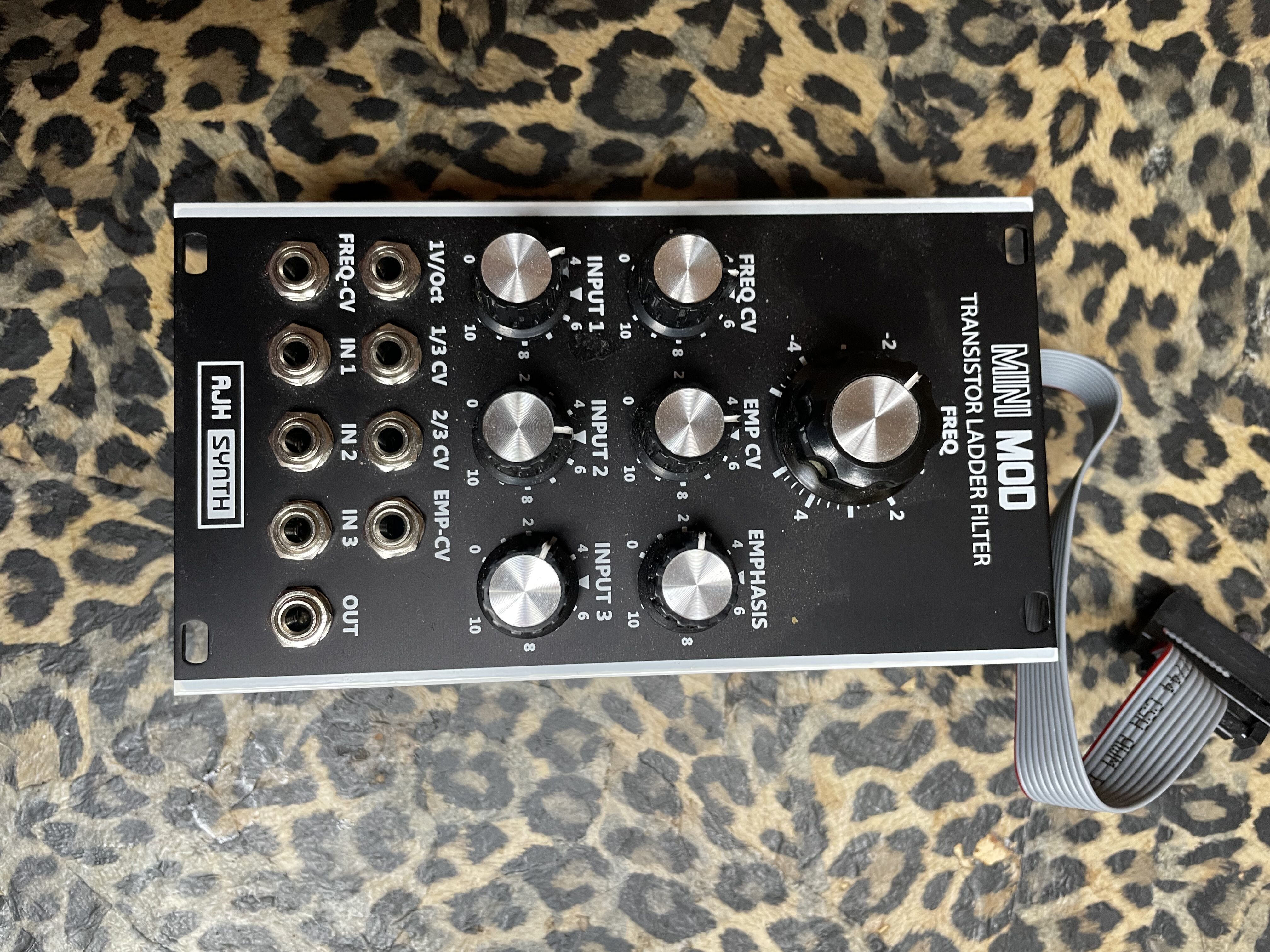

Moog transistor ladder filter of the original and now very rare R A Moog Model D Oscillator in Eurorack format
- 24db/octave low pass filter
- three channel input mixer
- filter cutoff control
- “1/3” and “2/3” CV inputs to emulate the action of the original VCF keyboard switches, apply 1v/oct to either of these inputs and the VCF keyboard tracking will be the same as the original with Keyboard 1 (1/3) or 2 (2/3) engaged, or use the 1v/oct input to emulate both switches selected.
- variable Exponential CV input which is about 30% more sensitive than the 1v/oct input, this allows some nice over modulation effects.
- added Voltage Controlled Resonance (Emphasis)
- manual Emphasis control that uses a vactrol as the control element for modulation speeds up into the audio range.
- overdrive facility which can be selected with an onboard jumper
-
Module Width: 14hp
-
Module Depth: 26mm
-
Current Usage: 45mA Positive, 30mA Negative
»
