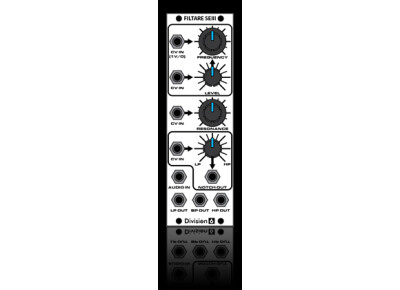

Division 6 Filtare SEIII

The Filtare SEIII is a multimode, state-variable voltage-controlled filter that gives you low-pass, band-pass and high-pass outputs which are all simultaneously available. It also includes a notch output which allows you to change the balance between low-pass and high-pass. The SEIII uses discrete components but is based on SSM2040 architechture, giving you a very musical sounding filter. There are CV inputs for frequency, resonance and notch balance. The 1 V/O CV input for frequency can be used to have the VCF follow what you're playing on the keyboard or just crank up the resonance and use it to play sine-waves.

Specifications:

Modes: LP, BP, HP

All modes are 4-Pole (24dB/Octave)

Notch: Change balance between LP and HP (total drop with balance at center is 3.4dB)

Power supply: +/- 12 VDC (reverse-polarity protected!)

Power draw: 80mA (+) / 80mA (-)

Width: 8HP

Depth: 1.38in / 35mm

Inputs:

CV (for frequency control): 1V/O fixed

CV (for frequency control): Adjustable

CV (for resonance)

CV (for notch balance)

Audio

Outputs:

Low-Pass

Band-Pass

High-Pass

Notch

Controls:

Frequency

Resonance

CV Level (frequency)

Notch Balance

Volts / Octave Adjust for 1 V/O input (trim pot on back)

Includes:

Filtare SEIII Module

Doepfer-style Power Cable

(4) M3 x 6mm Rack Screws w/ Nylon Washers
