Fiche technique
- Fabricant : AJH Synth
- Modèle : Vintage Transistor Core VCO
- Série : MiniMOD
- Catégorie : Modules générateurs pour synthés modulaires
- Autres dénominations : vintagetransistorcorevco, mini mod vco, minimodvco

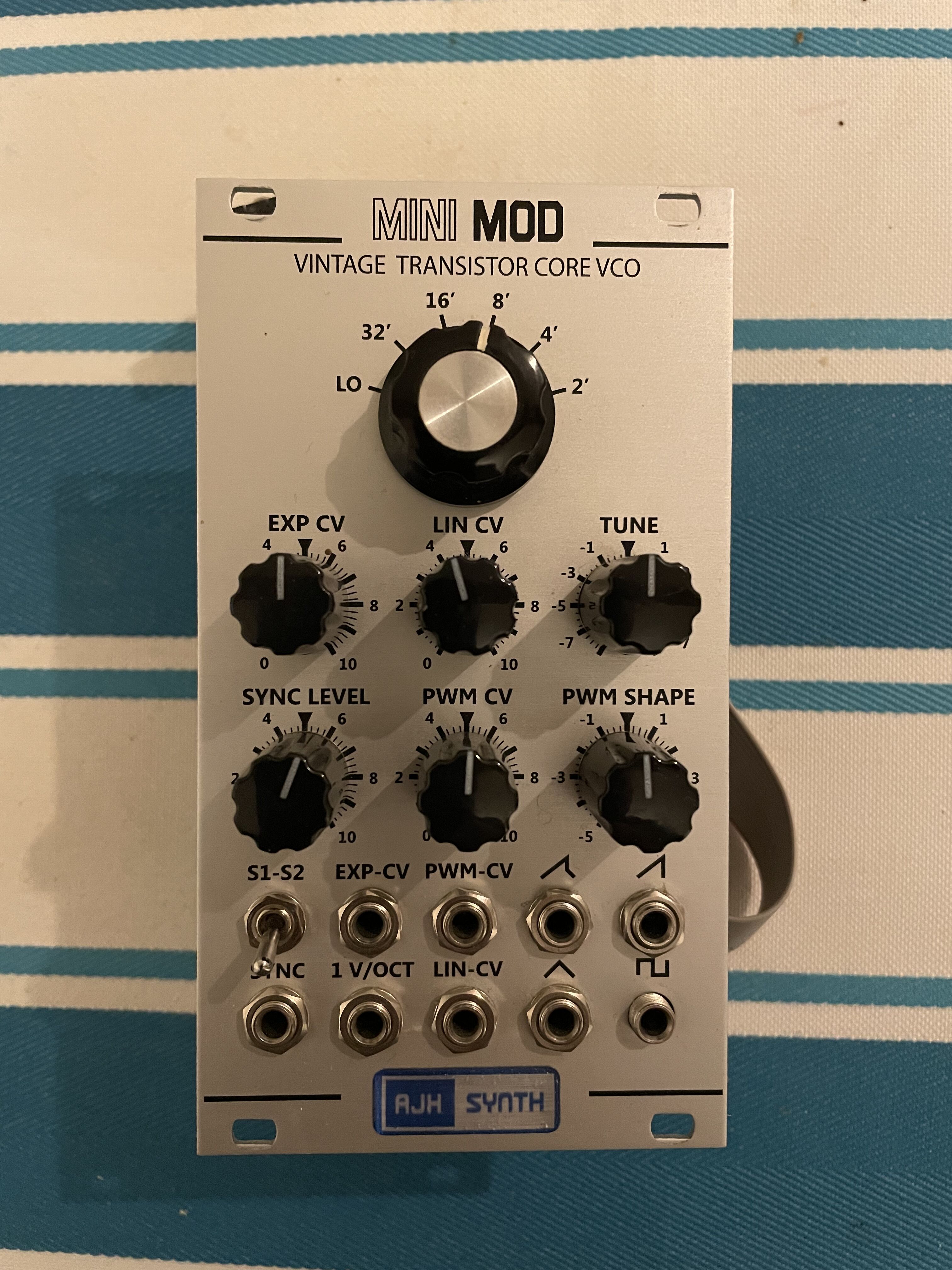

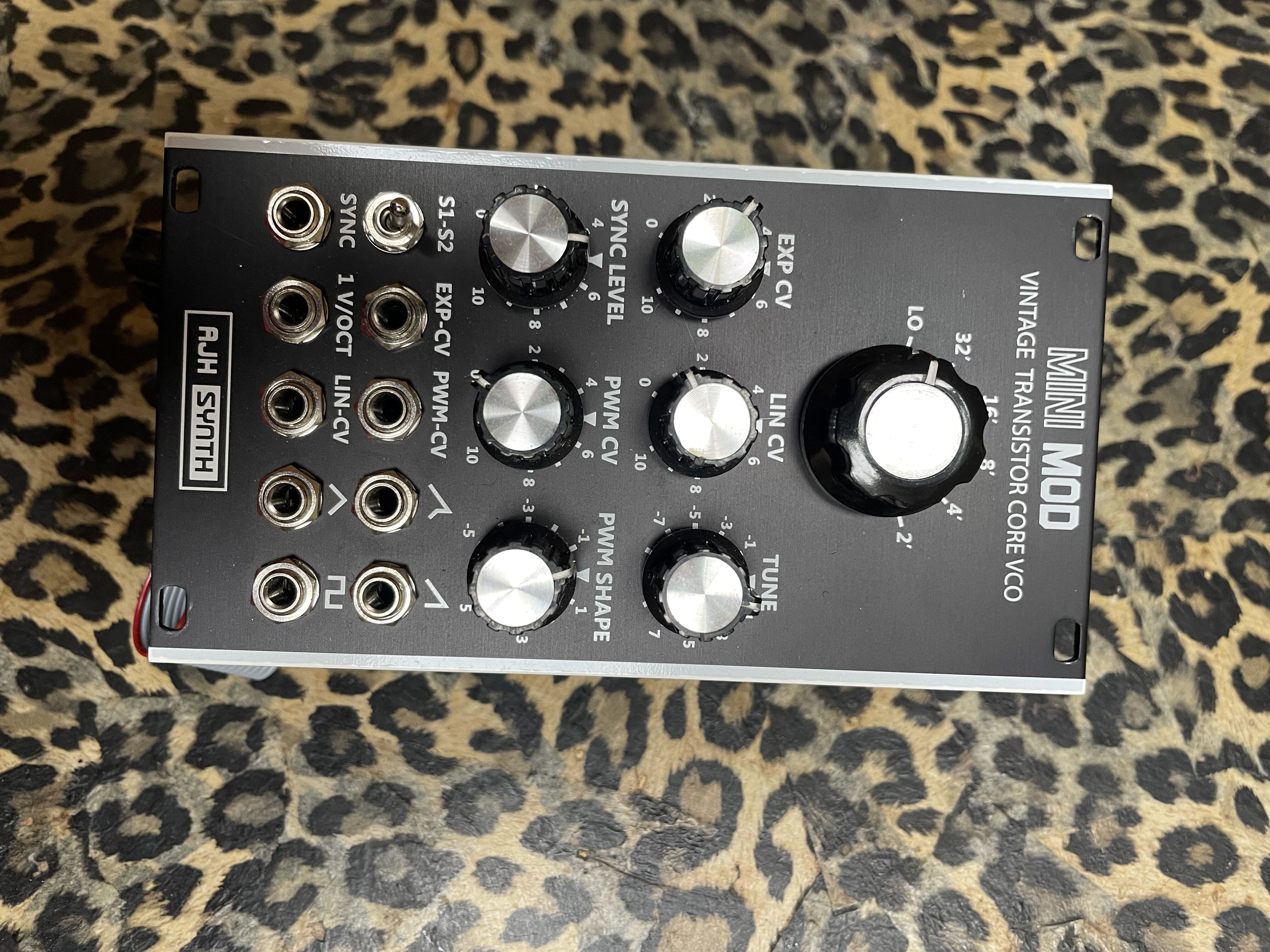

Voltage Controlled Oscillator which is an exact emulation of the original and now very rare R A Moog Model D Oscillator in Eurorack format
- front panel switchable octave selection and four independent waveform outputs including the famous “Sharktooth” wave, Sawtooth wave, Square wave and Triangle wave.
- Square wave output now has fully adjustable Pulse Width Modulation, with manual and CV control
- exponential and linear modulation inputs
- two different types of oscillator sync
-
Module Width: 14hp
-
Module Depth: 38mm
-
Current Usage: 55mA Positive, 40mA Negative
»

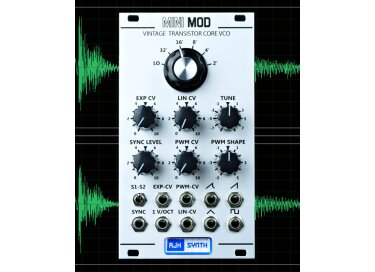

![[Musikmesse] AJH Synths MiniMOD](https://img.audiofanzine.com/img/product/normal/2/3/236723.jpg?fm=pjpg&w=80&s=0a60c34e3c98d1715afdbc2f751a44e6)
