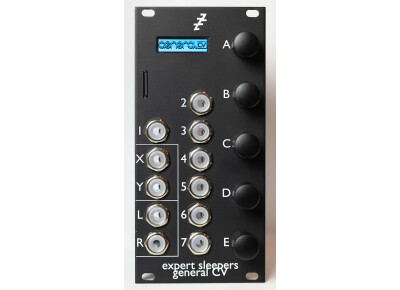

Expert Sleepers General CV

The General CV has a number of modes of operation, including:

• Behaving like a modular VCO, but using a massively multitimbral and polyphonic synthsizer engine as its tone source.
• Automatically creating chords and arpeggios from a pitch CV.
• Playing MIDI files from an SD card, including special support for playing loops synchronised to a clock pulse.
• Being a drum machine with up to nine independent drum trigger inputs.

Every mode also benefits from internal four band EQ, and stereo reverb and chorus effects.

• Panel width: 12HP
• Module depth: 50mm
• Inputs (3.5mm jack sockets)
  • 2 digital inputs
  • 3 unipolar CV inputs (0-5V)
  • 4 bipolar CV inputs (±5V)
• Outputs (3.5mm jack sockets)
  • 2 - stereo left & right
• 5 rotary encoders, each with push button
• 0.91" OLED display
• MicroSD card slot
• 'Select Bus' compatible (receive only)
• Expansion header for MIDI I/O (compatible with the disting mk4 MIDI breakout)
• Current draw: 91mA on the +12V rail, 27mA on the -12V rail
