Fiche technique
- Fabricant : FEEDBACK Modules
- Modèle : ENV 100
- Catégorie : Modules générateurs pour synthés modulaires
- Autres dénominations : env100
- Dimensions
- 6 HP
- 35 mm deep
- Current Draw
- 20 mA +12V
- 15 mA -12V
- 0 mA 5V
- Price
- €45 Price in $
Available as an assembled Module and as a DIY project.
This Module is currently available.

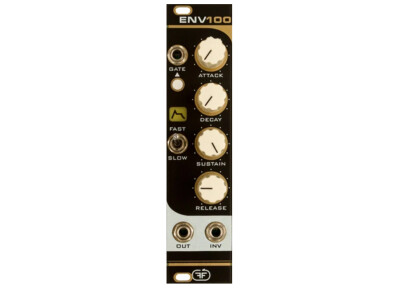

Specs are approved by the manufacturerThe fastest envelope generator in Modularland.
This is probably the fastest envelope generator in Modularland.
Why? Because it is based on the fastest one. The classic Japanese modular from the seventies everyone loves.
Why we did it? Because we wanted it in our own systems. And we wanted it in SMD.
Later we thought it would be nice to share it with other modular enthusiasts, so here it is.
The ENV 100 is a nice compromise. At 6HP is large enough so the user interface is not a pain to use, but small enough not to take significant space in your system.
It is a relatively fast build, with easy to find common parts and is adapted to work at +12/-12V eurorack power.
FAST TIME
Attack Time 4ms-2s
Decay Time 8ms-4s
Sustain Level 0-8V
Release Time 8ms-4s
SLOW TIME
Attack Time 6ms-20s
Decay Time 15ms-40s
Sustain Level 0-8V
Release Time 15ms-40s
