Fiche technique
- Fabricant : Pittsburgh Modular
- Modèle : Oscillator V2
- Catégorie : Modules générateurs pour synthés modulaires
- Autres dénominations : oscillatorv2, oscillator v 2

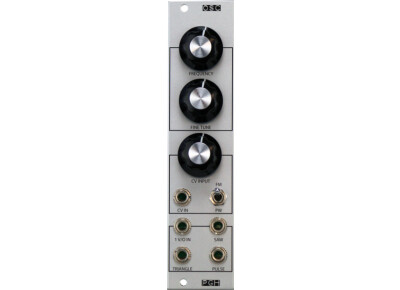

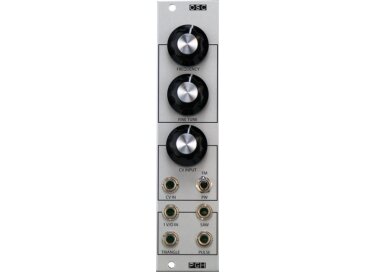

A wide range, compact, analog VCO with a simple but 100% useful feature set. The streamlined Oscillator shares the same saw wave oscillator core circuitry as the larger Waveforms oscillator module providing it with massive analog triangle, saw, and pulse waves. The Oscillator offers 5 octaves of 1 volt per octave tracking, a frequency range starting as low as 7 seconds per cycle, allowing it to double as a reliable voltage controlled LFO, and an attenuated CV input that can be used for linear frequency modulation or pulse width modulation.
Simultaneous Triangle, Saw, and Pulse Wave Outputs
Excellent Logarithmic Conformance
Temperature Compensated 1 Volt Per Octave Operation
Sawtooth Wave Based Oscillator Circuit
Linear Frequency Modulation
PWM Input: 5% to 95%
LFO Below Audio Frequency Operation
Oscillator Controls:
Frequency and Fine Tune Controls - Full range sweeping coarse tune and limited range fine tune knobs.
CV Input - Frequency modulation or pulse width modulation CV input and attenuator.
FM/PW Switch - CV Input frequency modulation or pulse width modulation destination selector switch.
OSCILLATOR PATCH POINTS:
1V/O IN - One volt per octave CV input.
TRIANGLE WAVE OUT - Triangle wave output.
SAW WAVE OUT - Saw wave output.
PULSE WAVE OUT - Pulse wave output.
Oscillator v2 Specs
Size: 6hp
Module depth: 35mm
Power Usage: +12v 30mA, -12v 30mA. Does not require +5v.
