Fiche technique
- Fabricant : Rossum Electro-Music

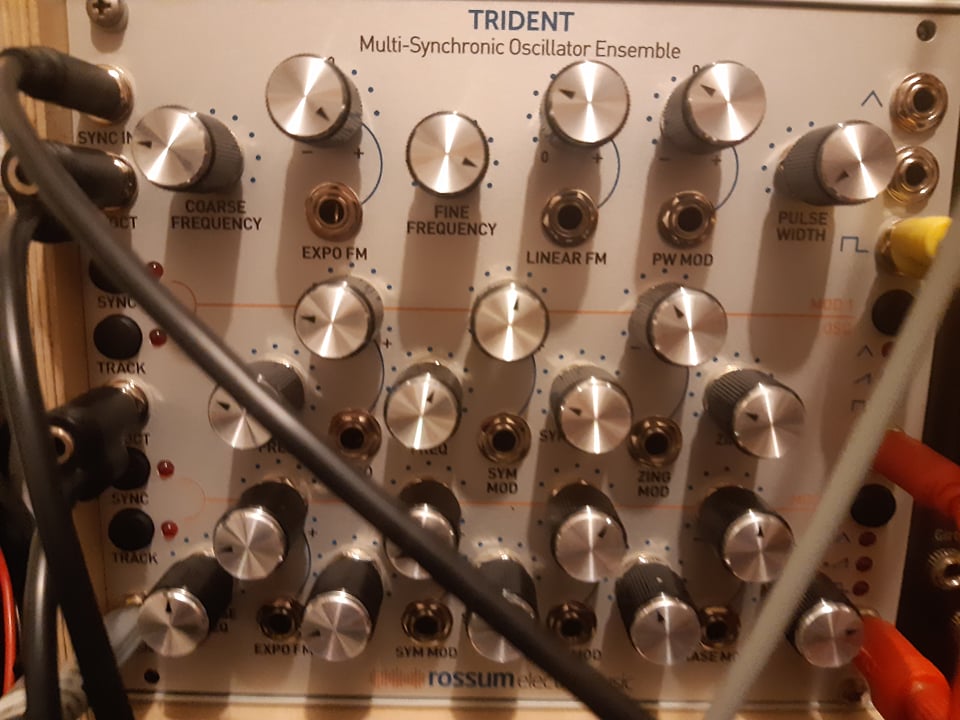

- Modèle : Trident
- Catégorie : Modules générateurs pour synthés modulaires
– Three precision analog oscillators with dedicated 1V/Octave inputs and coarse control ranges of 20Hz to 20kHz and modulated ranges of 0.01Hz to 25 kHz.
– Main Carrier oscillator with simultaneous triangle, sawtooth and pulse waveforms, with exponential and linear frequency modulation and pulse width modulation.
– Main Carrier oscillator hard sync input
– Modulation Oscillator 1 with selectable triangle, sawtooth and pulse waveforms with exponential frequency modulation, variable symmetry and symmetry modulation, and variable Zing level and Zing level modulation.
– Modulation Oscillator 2 with selectable triangle, sawtooth and pulse waveforms with exponential frequency modulation, variable symmetry and symmetry modulation, variable Zing level and Zing level modulation, and variable phase and phase modulation.
– Both Modulation Oscillators with independently selectable options to sync to the Main Carrier oscillator and track the Main Carrier oscillator
– Trident, like all Rossum Electro-Music modules, features solid construction, with thick aluminum panels, solid aluminum knobs, and quality components throughout.
TRIDENT is 30HP wide and 25mm deep.
Power requirements (max): 250mA +12V, 225mA -12V. Reverse polarity protected.
