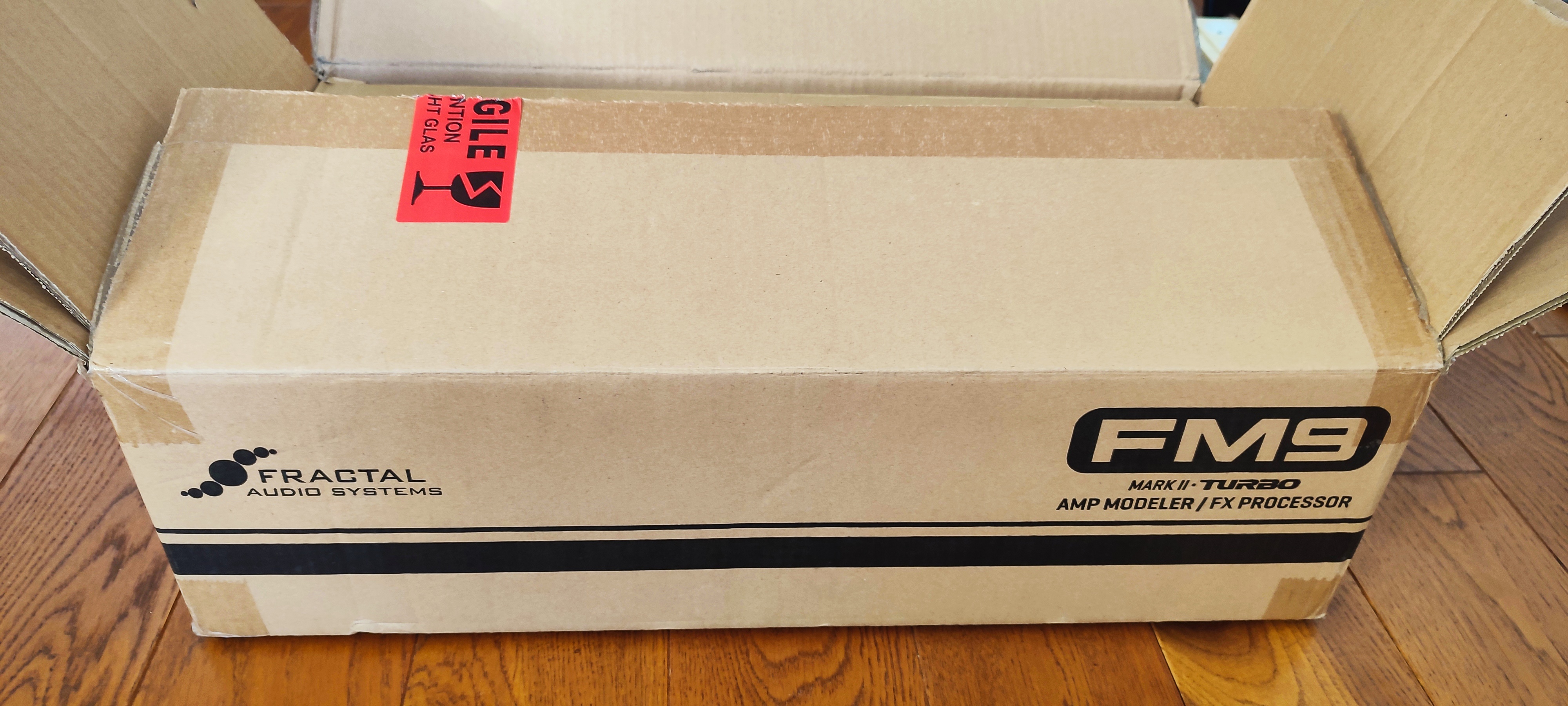

Fractal Audio Systems FM9 Turbo

• Fabricant : Fractal Audio Systems
• Modèle : FM9 Turbo
• Catégorie : Multi-effets pour guitare électrique
• Fiche créée le : 31/10/2023

• Dimensions: 20.2″ x 9.2″ x 3.5″ (512mm x 233mm x 88mm). The FM9 is the same size as the FC-12 controller
• Weight: 11 lbs 15.8 oz (5.44 kg)
• Two dual-core SHARC+ DSPs : 2x 500Mhz
• Screen: 800×480 high contrast color LCD (same on the Axe-Fx III Mark II). Grid: 14x6 (same as the Axe-FX III)
• Power Consumption: <40 W
• Fan: side and bottom venting, thermostat-controlled. WARNING: Do not block vent holes!
• Headphones output: 35 Ohm
• Pedal ports: 3, TRS (pedal or single switch), 10–100 kΩ max (pedal)
• A/D and D/A: 24-bit, 48 kHz, 114 dB dynamic range, frequency response: 20 – 20kHz
• Instrument input: rear 1/4" phone jack, unbalanced, “Secret Sauce IV”, 1 megaohm (variable), max. input level: +16 dBu
• Analog input 2: L/R, 1/4" phone jack balanced (TRS), 1 megaohm, max. input level: +20 dBu
• Analog input 3: L/R, 1/4" phone jack balanced (TRS), 1 megaohm, max. input level: +20 dBu
• Analog output 1: L/R, XLR balanced, ground lift, -10 dBv or +4 dBu, 600 Ohm, +20 dBu max
• Analog output 2: L/R, XLR balanced, ground lift, -10 dBv or +4 dBu, 600 Ohm, +20 dBu max
• Analog output 3: L/R, 1/4" phone jack unbalanced, Humbuster, 600 Ohm, +20 dBu max
• USB: Type B port, USB 2.0, 8x8 USB Audio (48 kHz fixed)
• Auto Input Impedance
• FASLINK II: XLR-F
• MIDI: IN (5-pin DIN) and OUT/THRU (5-pin DIN)
• S/PDIF: RCA Coaxial, uncompressed PCM, 48 kHz (fixed)
• Battery: CR-2032
• Grid: 12x6
• IRs: 1K max

The FM9 Turbo was announced in August 2022 and has replaced the first model. It uses two 500MHz processors versus two 450MHz processors in the original version. This provides 10% more CPU power. The Turbo unit looks just like the standard, but shows "TURBO" on the "Splash Screen" when it is booted (the same way Axe-Fx III turbo is distinguished.) The processor speed is displayed in the Utilities menu. Current FM9 units can NOT be converted or upgraded to Turbo models. The size of the mini displays is the same as on the original FM9. All onboard memory is the same; presets are fully cross compatible between the two variants assuming sufficient CPU. The count of presets, blocks, channels, effect types, scenes, layouts, etc. is the same on both variants. Both variants will continue to be fully supported with new firmware, editor, and other forms of support.

BLOCKS LIST:

AMP Amp Here it is! 290+ amp models in one block! 309+ : 4 channels  2 blocks
CAB Cab Speaker simulation including patented Ultra-Res™ tech and DynaCab™ 2,150+  : 4 channels,2 blocks
CHO Chorus Create classic mono and stereo modulation effects including vibrato. 17 types , 4 channels, 2 blocks
CMP Compressor Control dynamics and add sustain: 16 types, 4 channels, 2 blocks
XVR Crossover Split a signal into high and low frequency components:  2 channels,2 blocks
DLY Delay Up to 16 seconds of delay, with types for analog, digital, tape, and more: 27 types,4 channels,2 blocks
DRV Drive Type including boost, overdrive, distortion, fuzz, and many more. 65 types: 4 channels,3 blocks
ENH Enhancer Classic and modern modes to create and control spatialization: 3 types,4 channels,2 blocks
FLT Filter Includes low pass, high pass, band pass, and many other types: 15 types,4 channels,4 blocks
FLG Flanger Various types cover everything from subtle modulation to extreme jet: 31 types, 4 channels,2 blocks
FOR Formant Create dynamic vowel sounds with this multi-mode formant filter: 4 channels,2 blocks
GTE Gate/Expander Useful for everything from subtle control to extreme effects: 3 types, 4 channels,4 blocks
GEQ Graphic EQ A variety of modes allow easy, flexible tone sculpting. 16 types: 4 channels,4 blocks
IN Input Injects the signal from physical inputs onto the grid.4 channels: 4 blocks
LPR Looper A powerful looper with great remote control options.1 channels, 1 block
MGT Megatap This 40-tap delay creates fantastic sonic patterns: 20 types , 2 channels, 2 blocks
MIX Mixer Allows you to mix up to six stereo signals: 4 channels, 4 blocks
MTD Multi-Delay A variety of special delays including diffuser, quad-tap, and more: 34 types,4 channels,2 blocks
MBC Multiband Comp Three-band compressor that is great for mastering or dynamic EQ: 4 channels,2 blocks
MUX Multiplexer This input selector routes one of many inputs to an output: 4 channels, 4 blocks
OUT Output Transmits signal to the corresponding physical output jacks: 4 channels,3 blocks
PEQ Parametric EQ The 5-band parametric equalizer allows precise control of tone: 4 channels,4 blocks
PHA Phaser A variety of vintage and cutting edge phaser effects, including ‘vibe: 16 types,4 channels, 2 blocks
PIT Pitch Shift Includes capo, detune, harmonizer (intelligent/custom), whammy, and more: 16 types, 4 channels,1 block
PLX Plex Delay Up to eight delay lines and pitch shifters interacting in a matrix: 44 types,4 channels,1 block
RES Resonator Resonant comb filters in parallel. Create chords and more: 2 channels,2 blocks
RTN Return Receives signal from the Feedback Send block.2 channels: 2 blocks
REV Reverb World-class recreations of vintage springs, rooms, halls, and more: 66+ types, 4 channels,2 blocks
RNG Ring Mod The extremely flexible ring modulator provides for a range of cool effects: 2 channel,1 block
ROT Rotary Simulates a classic rotary speaker with multiple microphones: 4 channels,2 blocks
MIDI Scene MIDI The Scene MIDI block transmits MIDI messages whenever a Scene loads: 1 channel, 1 block
SND Send Transmits signal to the Feedback Return block: 1 channel,2 blocks
SYN Synth A 3-voice monophonic synth that tracks what you play: 4 channels,1 block
TTD Ten-Tap Delay Set the time, pan, and spacing of one to ten separate echoes: 2 types,4 channels, 2 blocks
TRM Tremolo Creates classic trem, plus auto-pan or extreme psycho acoustic effects: 5 types,4 channels,2 blocks
VOL Volume/Pan Simple volume block also offers channel input/output tools: 4 channels, 4 blocks
WAH Wah The essential wah, with multiple types based on classic originals: 8 types, 4 channels,2 blocks
