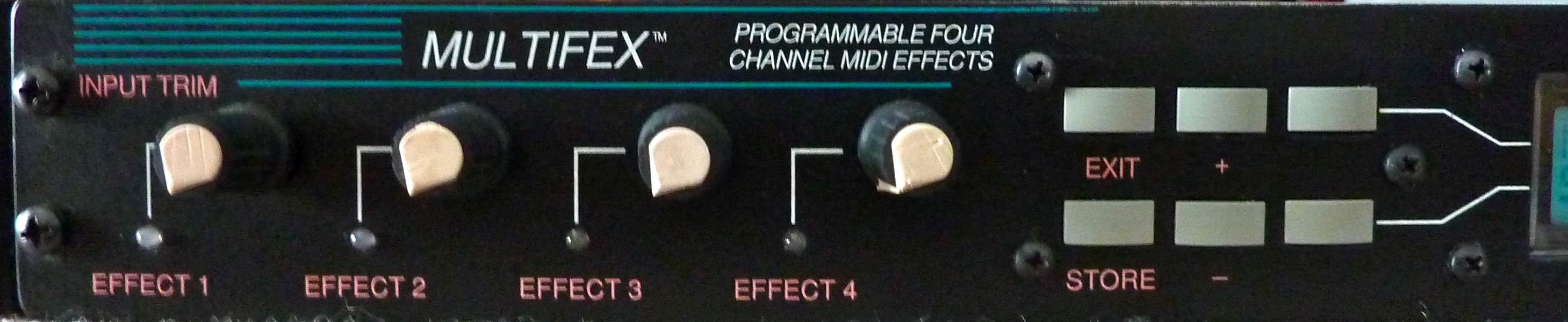

Peavey MULTIFEX

                                                                SPECIFICATIONS

EFFECTS SETTINGS
50 non-programmable REVERB settings
-30 Reverbs
-10 Gated Reverbs
-10 Reverse Reverbs
-10 programmable Stereo Chorus settings
-10 programmable Stereo Flange settings
-10 programmable Stereo Delay settings
-10 programmable Stereo Echo settings
-5 programmable Dual Stereo Reverb settings
-5 programmable Dual Series Parametric Equalizer settings
-10 programmable Gated Reverb settings
-18 fully programmable MULTI-EFFECT settings

DELAY RANGE
Left:     0.0 to 2.75 seconds
Right:  0.0 to 2.75 seconds

FREQUENCY RESPONSE
Dry Signal:       20 Hz to 20 kHz
Effect Signal:   20 Hz to 11.5 kHz

QUANTIZATION
16-Bit Linear PCM

DYNAMIC RANGE
Dry Signal:     100 dB minimum
Effect Signal:  96 dB minimum

INPUTS (All Channels)
Left/Mono:   -20 dBV minimum, +10 dBV maximum
Right:           -20 dBV minimum, +10 dBV maximum

OUTPUTS (All Channels)
Left:     +6 dBV maximum
Right:  +6 dBV maximum

HEADROOM (All Channels)
Active:   -20 dB down from maximum
Limit:      -6 dB down from maximum

VCO MODULATION
LFO RATE:       0.1 Hz to 10 Hz  (0 to 254)
LFO DEPTH:    0 to +/- 10.8 milliseconds
LFO WAVESHAPE :  Sinewave

AUXILIARY FOOTSWITCH
Effect Defeat Switch (optional)

MIDI IMPLEMENTATION
128 Presets
128 Patches of 4 Presets and 4 Mix Levels each
System Exclusive Dump and Load of Patches and Presets

POWER SUPPLY REQUIREMENTS
16 VAC - 16.5VAC 1000mA

Made in USA
