Fiche technique
- Fabricant : Teac

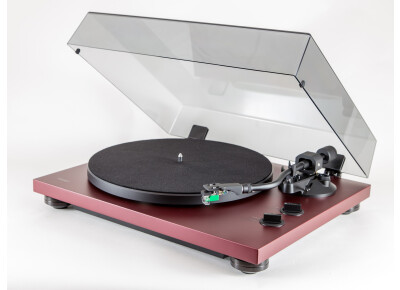

- Modèle : TN-400S
- Catégorie : Platines vinyle Hi-Fi
- Autres dénominations : tn400s, tn 400 s, tn400 s
Platine vinyle dotée d'un port USB, disponible uniquement aux USA
| Drive System | Belt Drive |
| Motor | DC Motor |
| Speed | 33 1/3 RPM, 45 RPM, 78 RPM |
| Rotation Speed Variation | +/–2% |
| Wow and Flutter | 0.2% |
| Signal-to-Noise Ratio | 67dB or higher (A-weighted, 20kHz LPF) 60dB or higher (unweighted, 20kHz LPF) |
| Platter | Aluminum Die-cast |
| Diameter of Platter | 12", 30cm |
| Tonearm section | |
| Type | Static Balanced, S-shaped |
| Effective Arm Length | 8.8", 223mm |
| Stylus Pressure Range | 0 to 5g |
| Supported Cartridge Weight | 3.5 to 6.7g 13.5 to 16.5g (including head shell) |
| Anti-skating Adjustment | Supported |
| Cartridge section | |
| Type | MM type (audio-technica AT100E factory installed) |
| Stylus Shape | Joint-oval 0.3 x 0.7 mil |
| Stylus Construction | Bonded Round Shank |
| Mount | Half inch |
| Frequency Response | 20Hz to 20kHz |
| Channel Separation | 27dB at 1kHz |
| Output Balance | 1.5dB |
| Needle Pressure | 1.0 to 1.8g (approximate value 1.4g) |
| Vertical Tracking Angle | 23 degrees |
| Supported Load Impedance | 47k ohms |
| Output Voltage | 4.5mV (1kHz, 5cm/sec.) |
| Cartridge Weight | 6.5g |
| Replacement Stylus | audio-technica AT100E |
| Phono Equalizer Amplifier | |
| Type of Amplifier | MM type (On/Thru switchable) |
| Analog Output | |
| Connector | RCA Pin jack (Gold-plated) |
| Output Voltage | Phono/Line switchable |
| Phono Output | 4.5mV (± 3dB) |
| Line Output | 230mV (–13dBV) |
| USB Output section | |
| Connector | USB B type |
| Output Signal | PCM 48kHz/16-bit |
| Supported OS | Windows 7, Windows 8, Windows 8.1, Windows 10 OS X Lion (10.7), OS X Mountain Lion (10.8), OS X Mavericks (10.9), OS X Yosemite (10.10), OS X El Capitan (10.11), macOS Sierra (10.12) |
| Power | AC 100 to 240V, 50/60Hz |
| Power Consumption | 1.5W (less than 0.5W at Standby) |
| Overall Dimensions (W x H x D) |
16.5" x 4.6" x 14.0" 420 x 117 x 356 mm |
| Weight | Approx. 10.8 lbs. 4.9 kg |
| Accessories | Felt Mat, EP Adapter, Counter Weight, Head-shell (audio-technica AT100E equivalent installed), Turntable(Platter), Dust Cover, Dust Cover Hinges, RCA Audio Cable with GND wiring, AC Adapter (GPE053A-V120050-Z), Owner’s Manual (including Warranty Card) |
»
