Fiche technique

Créée le 08/02/2013

Fabricant : Nova
Modèle : DC 8000
Catégorie : Processeurs sono numériques
Poids du colis : 4.9 kg
Autres dénominations : dc8000, dc 80 00, dc80 00


	Features. Description. Block diagram. PC remote software. Technical data. Downloads. Accessories.




	+ZOOM / click on the picture to enlarge

Features
► 4 inputs and 8 outputs with free routing (single mute function)
► Intuitive handling at the front-panel and via PC software in realtime
► 8 equalizers per input channel with low-shelf, high-shelf and parametric function
► 6 equalizers per output channel with low-shelf, high-shelf and parametric function
► Symmetric inputs and outputs via XLR connectors (Neutrik©)
► Analog and digital (AES/EBU©) inputs
► RS485 connectors at the rear-panel
► High performance 32-bit DSP (digtial sound processor)
► 96 kHz AD/DA converters (Burr Brown©)
► Dynamic range >114 dB
► Security functions (lock front panel, etc.)
► Up to 250 units can be controlled in one RS485 network via PC remote software

Description
The DC8000 is a digital 4-in / 8-out speaker management matrix system with an internal resolution of 32 bit and 96 kHz sampling rate. The DC8000 is equipped with 4 analog inputs, 8 analog and digital (AES/EBU© format) outputs and two RS485 remote-connectors. The use of modern and fast DSPs enables a latency (analog to analog) of 0,625 ms only. Each input channel includes 8 equalizers (with low-shelf, high-shelf and parametric function), a delay function and a noise gate. The polarity of each input channel can be switched from + to -. Each output channel includes 6 equalizers (with low-shelf, high-shelf and parametric function) and a delay function. The HPF (high-pass filter) and the LPF (low-pass filter) is part of each output channel. Both offer three different operation modes: Linkwitz-Riley, Butterworth and Bessel (up to 48 dB/Oct). Each output channel includes a high performance limiter. The integrated flash memory chip offers space for 30 presets which can be loaded via the preset-menu, three default-buttons or the PC remote software.

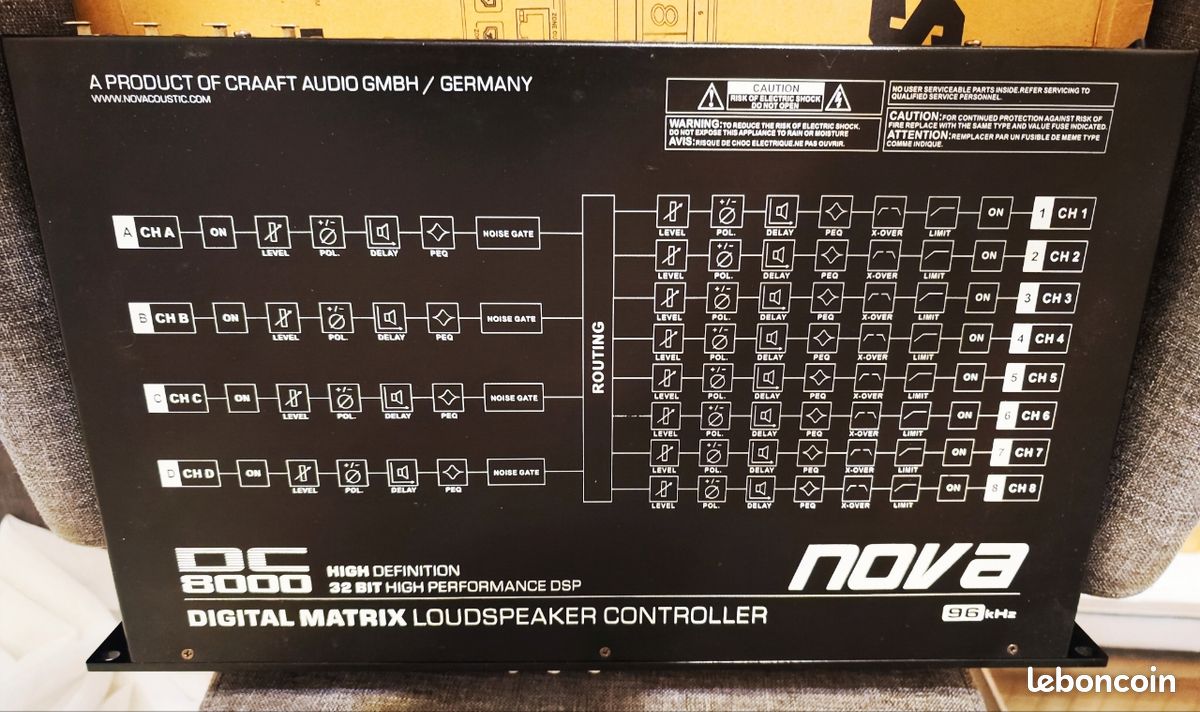

Block diagram

	PC remote software The DSP can be adjusted and controlled with the free PC software. This software is a professional tool and enables a quick and effective programming of presets in real-time (online or offline). The program shows adjustments of any filter in a graphic simulation. All DSP-functions and adjustments can be loaded, edited and saved with this tool. The software is compatible with WINDOWS 98©, WINDOWS 2000©, WINDOWS XP©, WINDOWS VISTA© and WINDOWS 7© (all 32-bit and 64-bit versions).

	Presets for NOVA speaker systems NOVA offers settings (presets) for many speakers and sound reinforcement systems free of charge. Check the speaker sites for download.

	The download and use of factory presets is free of charge. Subjects to change without prior notice. Limited liability on contents. The use of any factory presets is at your own risk (even in case of damage of the used product and the connected units).

	Technical data

	Model:
	Article number:
	Inputs:
	Outputs:
	Frequency crossovers:
	Filters:
	Delay:
	Converting & processing:
	Input connectors:
	Input voltage:
	Max. input voltage:
	Input impedance:
	Common mode rejection:
	Output connectors:
	Output voltage:
	Max. output voltage:
	Output impedance:
	Minimum load impedance:
	Frequency response:
	S/N ratio:
	Distortion:
	Display:
	Mains voltage / power consumption:
	Latency:
	Maximum power consumption:
	Dimensions unit (mm) W x H x D:
	Weight (net / gross):
	Optional Accessories:

DC8000

# 23014

4 (analog & digital AES/EBU©)

8 (analog)

6 dB/Oct., 12 dB/Oct., 18 dB/Oct., 24 dB/Oct., 48 dB/Oct. (slope),
Linkwitz-Riley, Butterworth und Bessel

80 parametric EQs, 80 shelving EQs (high shelf or low shelf),
8 low cut filters, 8 high cut filters, 8 limiters / compressors with peak limiter

4 master delays (0 ms - 990 ms)
8 channel delays (0 ms - 990 ms)

Burr Brown© AD/DA converters, 96 kHz sampling rate (internal),
32-Bit processor (DSP), 128-times over sampling,

4 x Neutrik© XLR female, electronically balanced

1.55 V / + 6 dBu (nominal)

24.5 V / + 30 dBu

20 kohms

> 70 dB / 1 kHz

8 x Neutrik© XLR male, electronically balanced

1.55 V / + 6 dBu (nominal)

8.7 V / + 21 dBu

> 100 ohms

600 ohms

20 Hz - 20 kHz (-0.5 dB)

114 dB (typical)

< 0.01%

4 x 20 character LCD display with LED background lighting

90 - 250 V (AC) @ 50 - 60 Hz / 20 W

0,625 ms

20 W

472 x 44 x 277, 19” format, 1 RU/RS (HE)

3.5 kg / 5 kg

URC1: Converter USB / RS485 (# 20065)
PATCH1: Patch cable, 1 x XLRF, 2 x XLRM (#90034)


	We continually engage in research related to product improvement. Materials, production methods and design refinements are introduced into existing products. Any current NOVA product may differ in some respect from its published description, but will always equal or exceed the original design specifications unless otherwise stated.

Downloads


	Pictures of product
	Declaration of Conformity (CE)
	Drawing
	User manual
	Review

DC8000 picture 1
DC8000 picture 1
DC8000 picture 2

DC series

DC8000

n/a

PC remote software


	PC remote software

DC8000
compatible with WINDOWS 98©, WINDOWS 2000©, WINDOWS XP©,
WINDOWS VISTA© and WINDOWS 7© (all 32-bit and 64-bit versions)


	Driver for URC-1 converter (via RS485)
	Driver for URC-2 converter (via RS485)

RS485 driver (WIN98/2000/XP/VISTA)


	Driver for URC-1 converter (via RS485)
	Driver for URC-2 converter (via RS485)

RS485 driver (WIN7)

Accessories


	URC1 Converter USB to RS485, for RS485 network (including CD-ROM, RS485 CAT5 cable and USB cable)


	PATCH1 Patch cable, 1 x Neutrik© XLR female (input), 2 x Neutrik© XLR male, length 25 cm
