Fiche technique
- Fabricant : Knob Technology
- Modèle : Muscarin
- Catégorie : Synthétiseurs analogiques en rack
- Fiche créée le : 22/10/2018

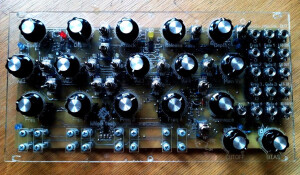

Synthétiseur analogique semi-modulaire au format desktop pour créer bruits et drones
- 4x VCO, square wave, cross-modulation control "Bias", control by CV full range linear or 1V/oct (4-octave range; 32-500 + Hz)
- LFO with two waveforms square and triangular.
- AR envelope generator. Can both receive an external gate signal, synchronize with the LFO, and automatically generate an envelope.
- VCF filter + saturator 12 dB/oct LP and HP modes.
- 5X vactrol-based VCA / Gate, one on each generator before the filter and one on the common output.
-The front panel is made of plexiglass
- Desktop version with a wooden case (pine, CNC milling) or Eurorack format without a case, the front panel at choice - Plexiglass or Aluminium
- Weight: 600 g
-Height: 3U
-Length: 48HP
-Depth 4 cm.
- Power supply 12V. 200mA max.
