Fiche technique
- Fabricant : Fal

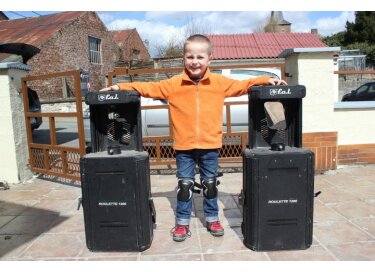

- Modèle : roulette 1200hmi
- Catégorie : Scanners
- Autres dénominations : roulette1200hmi, roulette 1200 hmi, roulette1200 hmi
17 – TECHNICAL DATA
POWER SUPPLY: 230V 50Hz (or 60Hz to order).
POWER
CONSUMPTION:
1900VA at 230V.
LAMP: HMI 1200 GS DE. (Osram)
Colour Temperature 6100 K,
Socket SFc 15.5 life 1000 hours (manufacturer ratings).
OPTICS: High efficiency optical system.
CTC: 1 Colour temperature conversion filter.
COLOURS: 9 dichroic filters with chromatic yield + white.
Variable speed continuous colour wheel bi-directional rotation to produce Rainbow
effect.
ROTATING GOBOS: 5 indexable interchangeable rotating gobos + clear.
FIXED GOBO: 5 fixed gobos + white.
PRISM: 1 x 4 facet rotating prism.
STROBE, SHUTTER: Fast action shutter for beam blackout.
Strobe effect with strobe speed fully adjustable from 1 to 7 flashes per second.
MOTORS: 6 step motors + 2 DC motor controlled by internal microprocessor.
MOVEMENT: Pan movement through 180°.
Tilt movement through 110°.
CONTROL: Standard DMX 512 with digital display and 4 buttons.
9 control channels, 11 if used with High resolution PAN and TILT setting.
Automatic mode: this function allows groups of four units to operate with an internal
sequence.
Sound activation: this function allows groups of four units to operate with a music
activated internal sequence.
COOLING: Forced cooling via low noise axial fans.
HOUSING: Extruded aluminium.
Metal parts have epoxy powder paint finish.
Easy access to lamp and main components.
Protection IP20.
DIMENSIONS: 905mm L x 450mmW x 230mm H (380mm including bracket).
Weight 39kg.
