Fiche technique
- Fabricant : Schertler

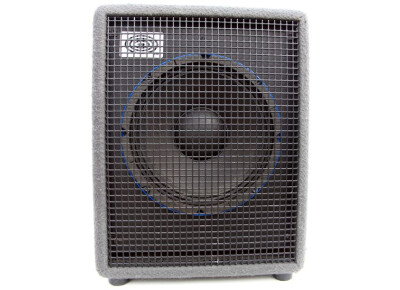

- Modèle : PUB 1/380
- Catégorie : Subwoofers amplifiés
- Autres dénominations : pub1380, pub1 380, pub1 380
Technical Specifications: Construction: Bass Reflex 10" woofer
Power output: 380 watts continuos RMS/600 watts peak (8 ohm / 0.10 % THD)
Frequency response: 35 Hz - 120 Hz (-3db)
Maximum SPL: 120 dB
Connections: XLR in-out; 2 x crossoverized XLR out
Power supply: 220 Vac 50 Hz / 115 Vac 60 Hz (manual switching)
Safety: Ground lift switch (anti-hum)
Controls: Volume
Mounting: d=36 mm std. Mount (top and bottom)
Transport: Two spring loaded carrying handles
Dimensions: 45 x 35 x 37 cm
Weight: 23.00 Kg (ca. 50 lbs.)
»
