Fiche technique
- Fabricant : Yorkville

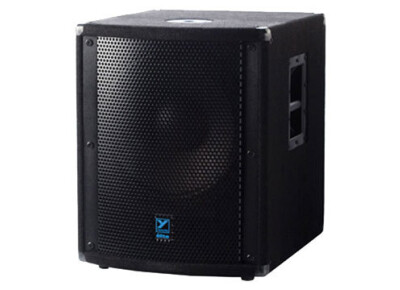

- Modèle : LS 720P
- Catégorie : Subwoofers amplifiés
- Autres dénominations : ls 720p, ls720p, ls 720 p, ls720 p, ls720pelite, ls720 pelite, ls720 p elite, ls 720p elite, , ls720pelite, ls720 pelite, ls720 p elite, ls 720p elite
| System Type | Powered Subwoofer |
| Active or Passive | Active |
| Program Power (Watts) | 720 Watts (1500 Watts Peak) |
| Max SPL (dB) | 135dB Peak (128dB Continuous) |
| Frequency Response (Hz +/- 3dB) | 40 - 150 adjustable |
| Driver Configuration | 15-inch w/ 3-inch voice coil |
| LF Protection | Electronic Limiting (Excursion, Thermal, Clip) |
| Cooling Scheme | Passive convection |
| Power Cable | Detachable IEC |
| Power Switch | Yes |
| Power Consumption (typ/max) | 230VAC 50 Hz 1.2A |
| Inputs - 1/4" Jacks | 1 In, 1 Link Out |
| Inputs - XLR | Left and Right Male/Female Link |
| Level Controls | Main Volume |
| EQ Controls | HF Cut-off 90 - 150Hz |
| Limiter | RMS / Peak / Current |
| LED Indicators | Power / Limit / Clip |
| Other Controls / Features | Selectable line or Speaker level input 45Hz - 90Hz variable boost frequency |
| Feet | Rubber |
| Bar Handles | 2 Side Mounted |
| Pole Mount Adapter (1 3/8"-3.5cm) | Top |
| Enclosure Materials | 15mm (5/8-inch) 11-ply Russian Birch |
| Grille | Heavy Gauge perforated metal |
| Covering / Finish | Black Ozite Carpet |
| Dimensions (DWH xbackW, inches) | 21.5 x 18.1 x 22.75 |
| Dimensions (DWH xbackW, cm) | 54.6 x 46 x 57.8 |
| Weight (lbs/kg) | 74.5 / 33.8 |
Distribué par Major Audio
»
