Yorkville SA 315S (Series Synergy)

Active or Passive

Active

Program Power (Watts)

6500 Watts Program (13000 Watts Peak)

Measured Max SPL (C-Weighted, Max Hold)

130 dB Cont. 136 dB Peak

Frequency Response (Hz +/- 3dB)

31Hz-100Hz

Crossover Frequency (Hz)

100 Hz lowpass

Cabinet Configuration

Bass Reflex

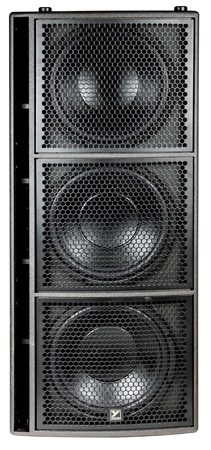

Driver Configuration

3x15" LF woofer

LF Driver(s)

15" Ceramic with 3" Voice Coil

LF Program Power(Watts)

6500 Watts Program (13000 Watts Peak)

LF Impedance (Ohms)

2.7 ohm Load (3x 8 ohm)

LF Protection

Excursion, Voice Coil Thermal (RMS)

LF Power Amplifier (Watts)

6500 Watts Program (13000 Watts Peak)

LF Amplifier Type

Class D

Cooling Scheme

Convection

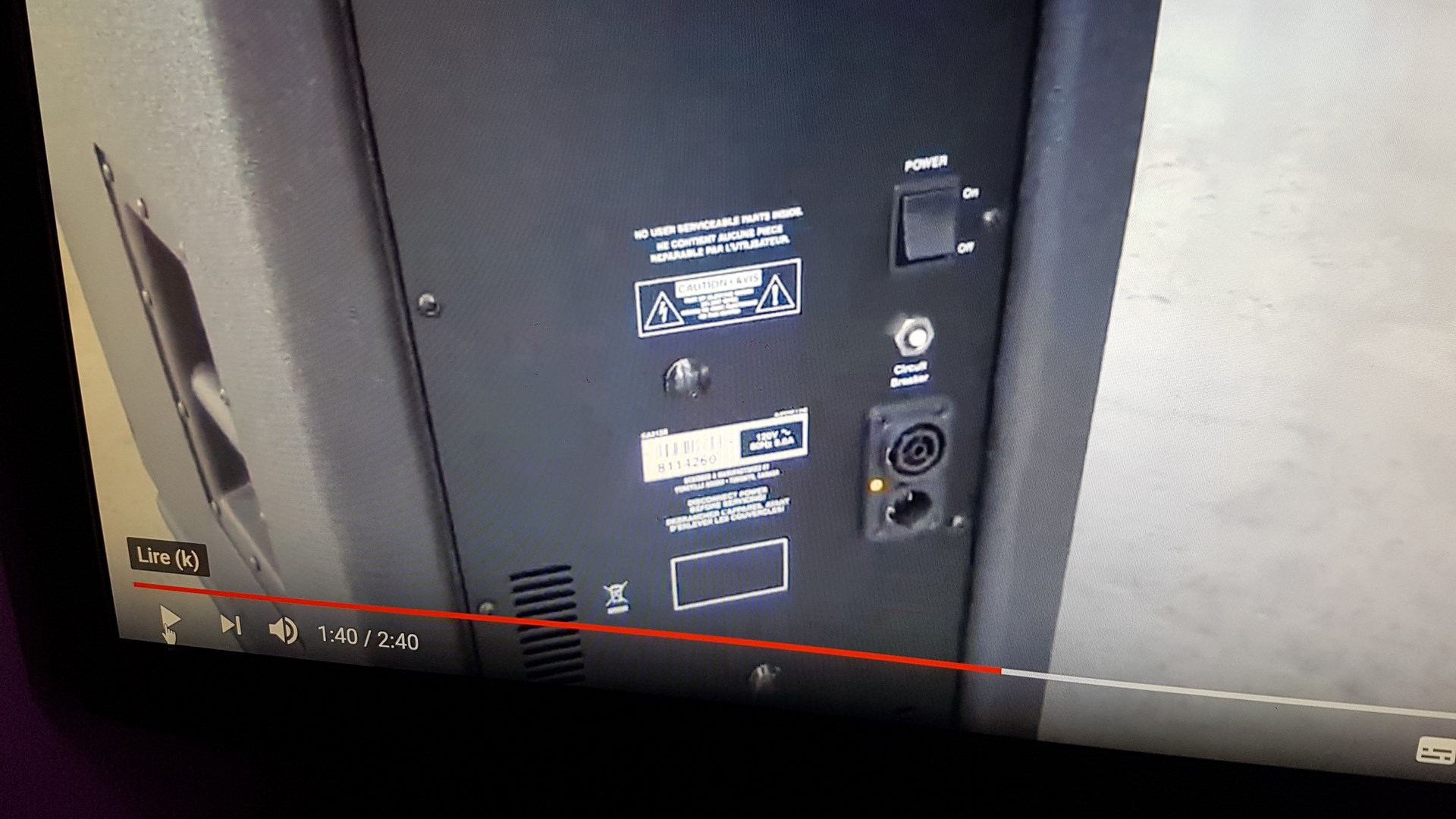

Power Cable

Removable Locking Powercon True Input and Loop Thru Output

Power Switch

Yes

Power Consumption (typ/max)

600 VA / 1200 VA

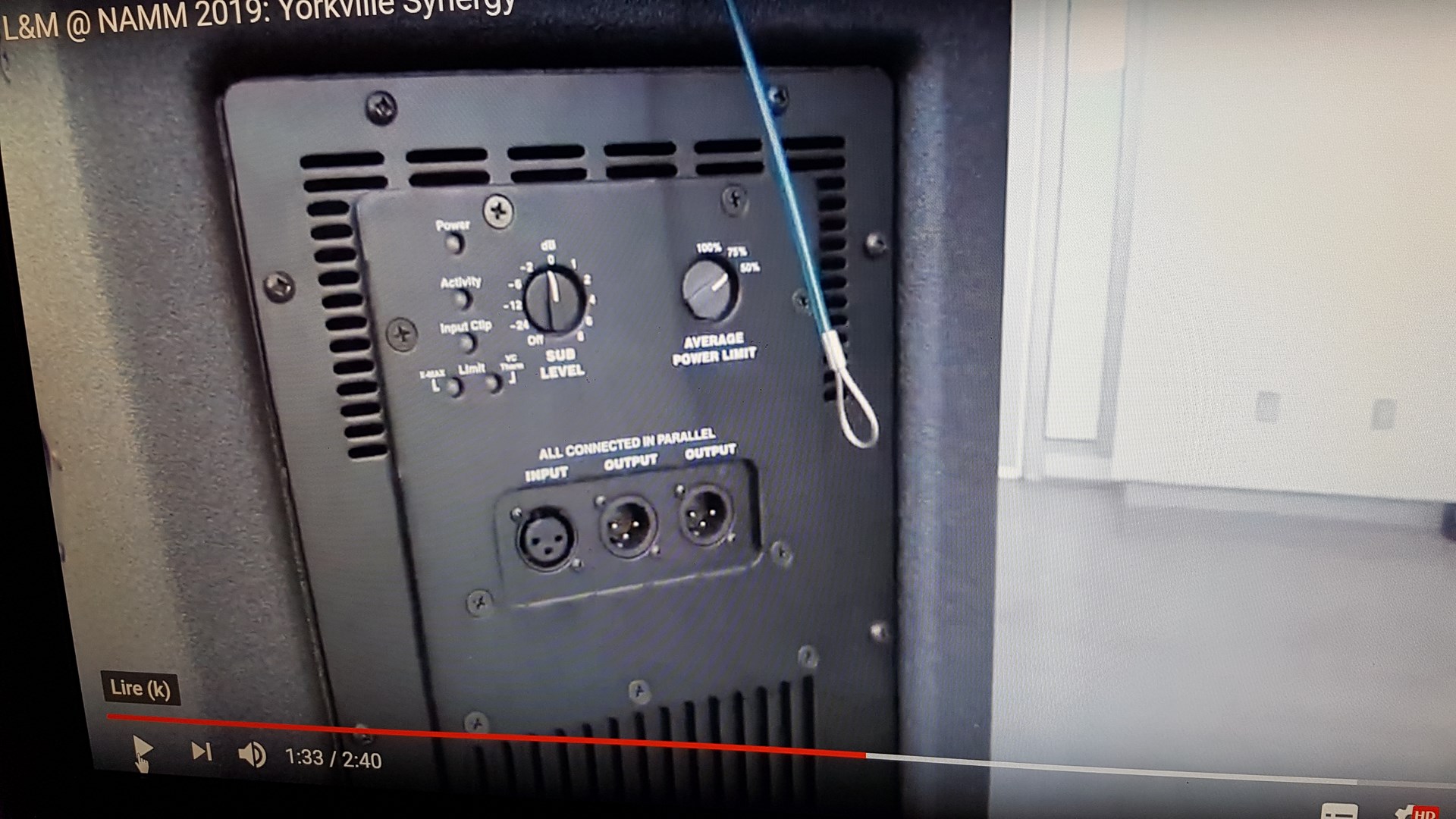

Inputs

1 XLR with 2x XLR Parallel out, Impedance 35k ohms

Input Sensitivity (Vrms Sine)

Line in 1.4 at center, 0.56 at max

Level Controls

Volume, -∞,0dB,8dB (Min, Top, Max)

EQ Controls

Thermal Limiter Advance for power consumption management

Limiter

Excursion, Thermal (RMS), Clipping

LED Indicators

Power, Excursion Limit, Thermal (RMS) Limit, Input Clip, Activity

Enclosure Materials

Multiply 15mm Birch Plywood

Standard Rigging Hardware

RAIL and LOCKBAR Rigging System (Top and Bottom)

Stacking Feature

Interlocking UHMW Feet (Top and Bottom)

Covering / Finish

Paint

Dimensions (DWH xbackW, inches)

24 x 21 x 51.5 x 12.25

Dimensions (DWH xbackW, cm)

60.9 x 53.3 x 130.8 x 31.1

Weight (lbs/kg)

236/107

Pick Up Bar (SAPICKUPBAR1)

Single column cabinet hanging hardware (2xSA153 Plus 1xSA315S MAX)

Flying Bumper (SABUMPER1)

4 wide flying bumper (8xSA153 Plus 4xSA315S MAX)

SA153 Cabinet Cover (SA153COVER)

Will cover 2 Cabinets (stacked)

SA315S Cabinet Cover (SA315SCOVER)

Will cover 1 Cabinet

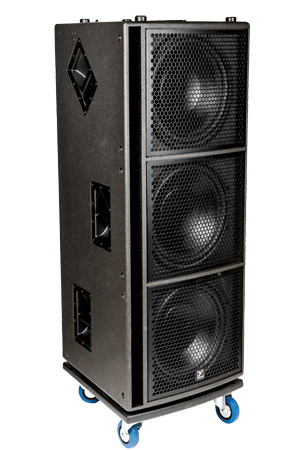

Cabinet Dolly (SADOLLY1)

Holds 2 x SA153 stacked or 1 x SA315S
