Fiche technique
- Fabricant : JBL
- Modèle : ASB6112
- Catégorie : Subwoofers passifs
- Fiche créée le : 31/10/2018

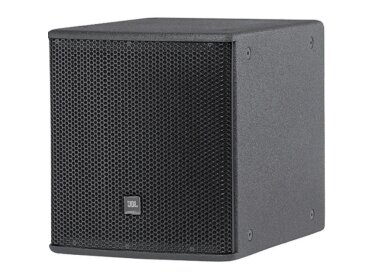

Caisson de basse 12".
Features
- 2263H 12" Differential Drive® dual voice coil dual gap, neodymium magnet transducer
- 1000 watts continuous pink noise,
4000 watts peak power handling capacity - Large vent area for high output with low distortion
- For ground-stacked or suspended applications in stand-alone arrays or in combination with other
AE Series products
Specifications
| Frequency Range (-10 dB) | 35 Hz – 1 kHz | |
| Frequency Response (± 3 dB) | 43 Hz – 1 kHz | |
| Transducer Power Rating | 1000 W (4000 W peak), 2 hrs. | |
| Long-Term System Power Rating |
700 W (2800 W peak), 100 hrs. | |
| Maximum SPL (1m) | 40 Hz - 300 Hz: 126 dB-SPL cont avg (132 dB peak) | |
| System Sensitivity | 40 Hz - 300 Hz: 96 dB-SPL, 1W (2.83V) @ 1m |
|
| Nominal Impedance | 8 ohms | |
| Low Frequency Driver | 1 x 2263H, 305 mm (12 in) dia., 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive® driver | |
| Enclosure | Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood | |
| Suspension Attachment | 16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware | |
| Finish | Black DuraFlex™ finish. White available upon request. |
|
| Grille | Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing. | |
| Input Connector | NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through. | |
| Environmental Specifications | Mil-Std 810; IP-x3 per IEC529. | |
| Dimensions (H x W x D in vertical cabinet orientation) |
406 x 369 x 483 mm (16.0 x 14.5 x 19.0 in) |
|
| Net Weight | 16.3 kg (36.0 lb) | |
| Optional Accessories | M10 x 35 mm forged shoulder eyebolts with washers. |
Source : Site officiel
