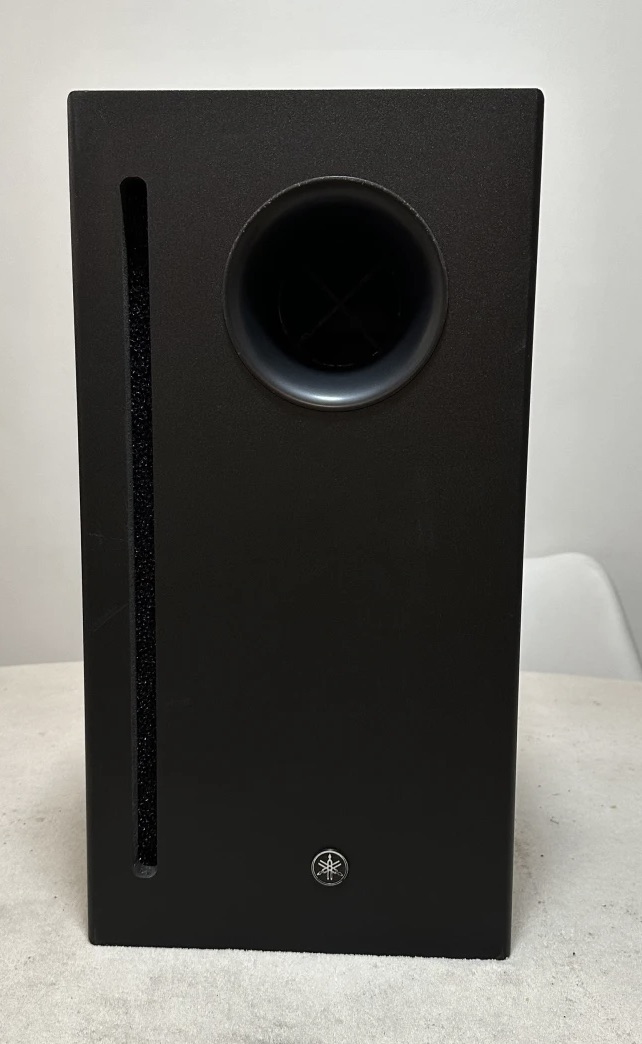

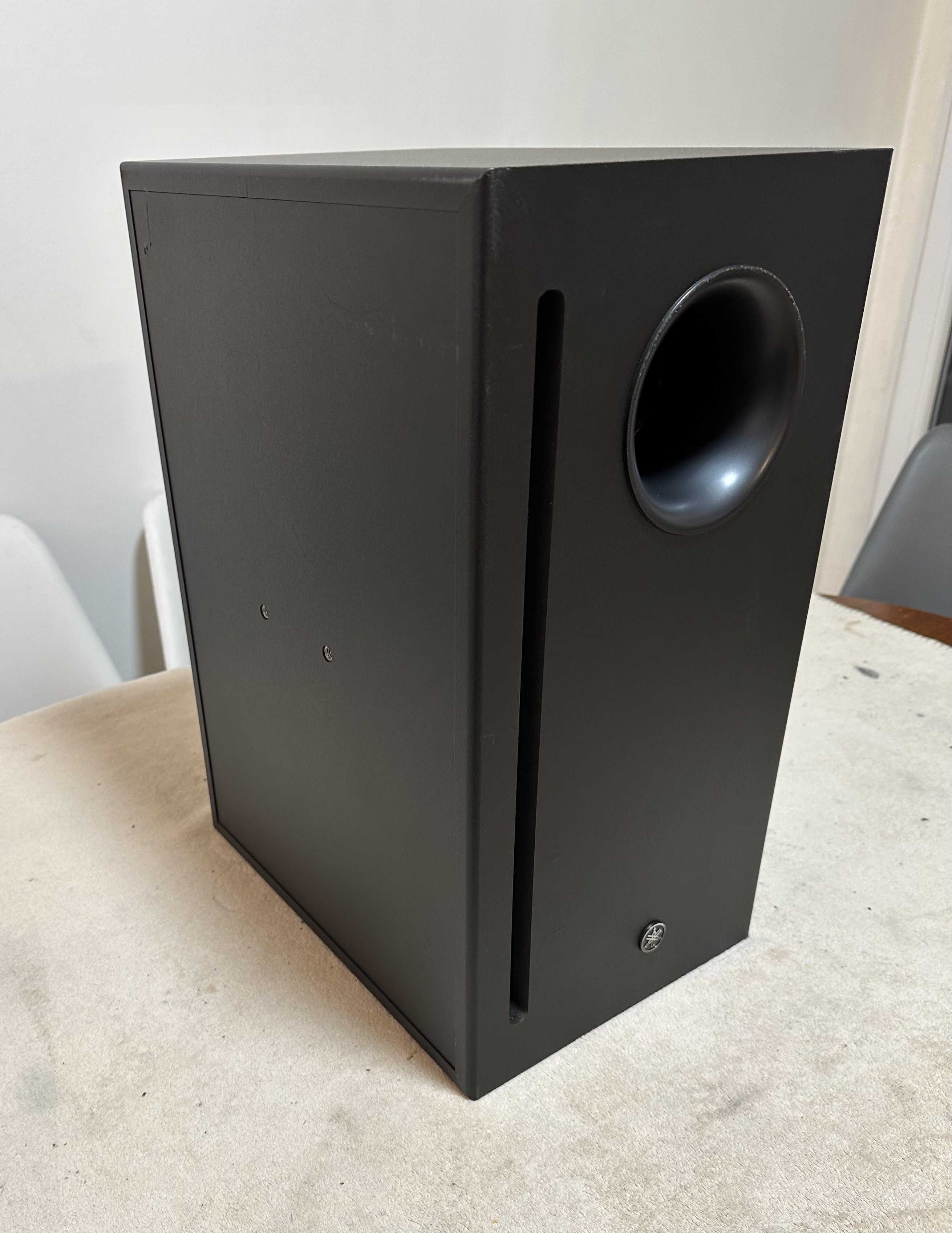

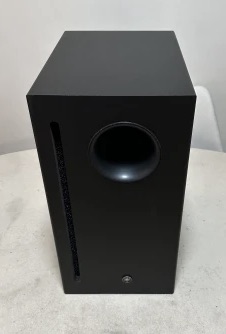

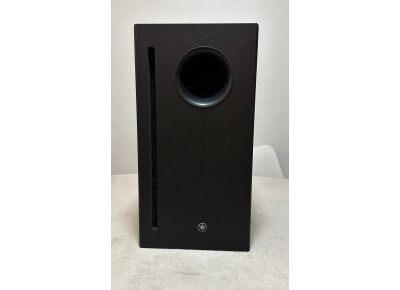

Yamaha VXS10S

Ajouter ce produit à

Déposer un avis

Argus 228,89 €

Vue d’ensemble Vue d’ensemble

Où acheter VXS10S ?

Moins

Il n’y a pas de petite annonce pour ce produit.

Alerte nouvelle annonce

Argus 228,89 €

Fiche technique

Créée le 27/09/2024

General specifications VXS10S / VXS10SW
Speaker type Subwoofer
Frequency range (-10dB) 45Hz - 250Hz
Components LF 10" Dual Voice Coil
Power rating NOISE 100W + 100W -
PGM 200W + 200W -
Nominal impedance 8Ω + 8Ω
Satellite impedance 8Ω load per satellite output recommended
SPL Sensitivity (1W; 1m on axis) 96dB SPL
Peak (Calculated) 125dB SPL

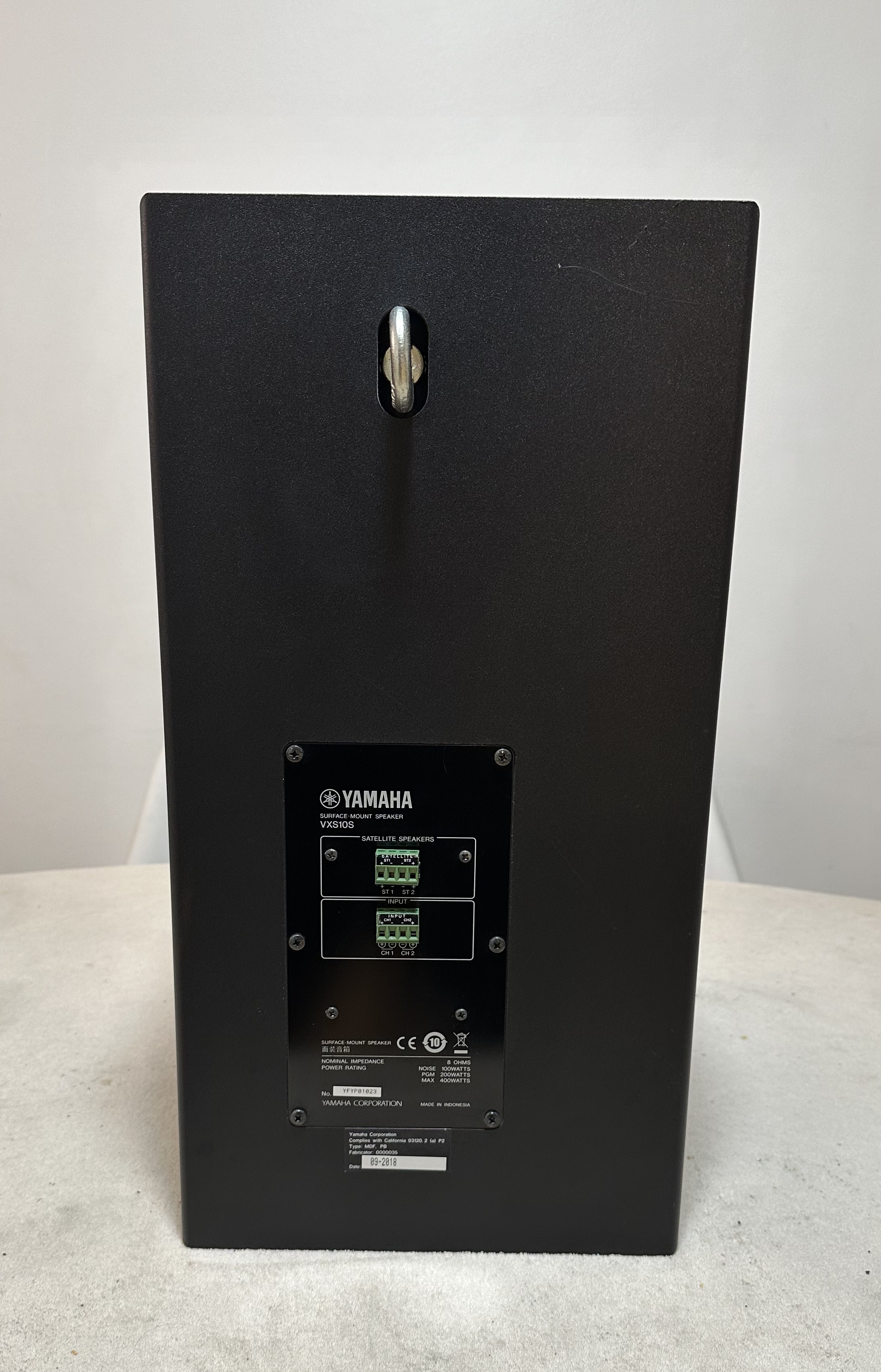

I/O connectors Input: 1x Euroblock (4P)(CH1: + / -, CH2: + / -), Satellite Output: 1x Euroblock (4P)(ST 1: + / -, ST 2: + / -)
Shape Rectangular
Cabinet material MDF
Finish VXS10S: Black, VXS10SW: White
Dimensions W 260mm (10.2")
H 500mm (19.7")
D 389mm (15.3")
Net weight 16.5kg (36.4lbs)
Accessories Wall mount bracket
Packaging Packaged each
Certificate CE, EAC, RoHS
EN54-24 compliance - -
Transformer taps 100V -
70V -
*Frequency range: Half space
*Nominal coverage: 500Hz - 4kHz Average
*Power rating: IEC
*Satellite impedance: Impedance lower limit (per satellite output) VXS10S/10SW: 4Ω, VXS10ST/10STW: 8Ω
*Environmental: IP34 when installing the speaker to the ceiling vertically.
