Fiche technique
- Fabricant : Standuino
- Modèle : fraAngelico
- Catégorie : Autres synthétiseurs/racks
- Autres dénominations : fra angelico

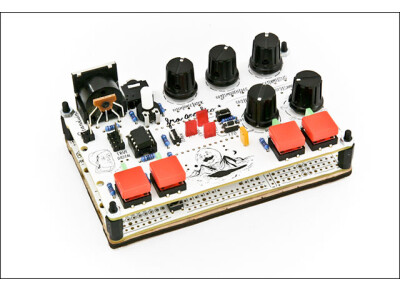

The Standuino fraAngelico is an 8-bit PWM digital synth, built on the Arduino platform.
It does not use any D/A convertor, but the sound is generated by one digital output pin using Pulse Width Modulation.
Resolution of this technique to achieve different voltage levels is 8-bit, but in the true essence the output form the synth is just 1-bit because the output pin does jus 1 or 0 which makes distinctive digital character to its sound.
Despite its puristic and minimalistic sound generation, FraAngelico can make a wide range of different sounds from powerful bass to glitchy noises as well as complex rhythmic structures. Its unprocessed raw digital output can be also synchronised with any MIDI device through its MIDI input.
fraAngelico features:
- size: 11 x 7 x 4 cm
- MIDI input (MIDI Through by special cable)
- 5 knobs
- 3 switch menu buttons
- 4 big performance buttons
- 1 volume knob
- grain synthesis
- true digital LFO
- envelope
- 8 presets (4 user, 4 factory)
- input voltage: 9V
- Jack 3.5 output
