Fiche technique
- Fabricant : API Audio
- Modèle : 535-LA
- Catégorie : Tranches de console
- Fiche créée le : 30/10/2015

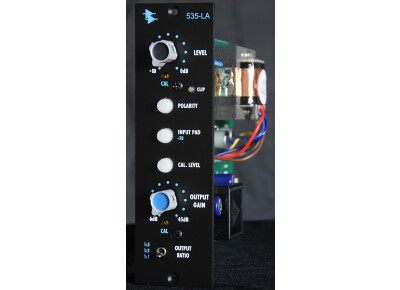

A line amplifier in 500 format modeled after API’s console-based 325 booster cards to amplify and attenuate incoming and outgoing signals (keyboards, audio playback devices, or from mic preamps or audio processing devices that do not have their own level control) and adding warmth to digital signals such as DAW outputs
- a balanced input
- a polarity switch
- a 20dB pad for incoming signal attenuation
- a three position "Ratio" toggle switch, which allows for different output gain levels from the transformer.
- Output gain range is from 6dB to 45dB
- discrete 2510 and 2520 op amps
- API’s proprietary transformers
- 5 year warranty
Distribué par Tiger Audio
»
