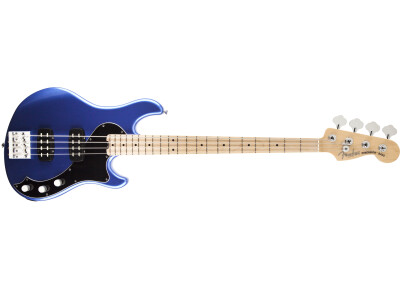

Fender American Standard Dimension Bass IV HH

General

• Model Name : American Standard Dimension™ Bass IV HH
• Model Number / Finish :
• 0191602773 / Ocean Blue Metallic, Maple Fingerboard
• 0191600706 / Black, Rosewood Fingerboard
• 0191602705 / Olympic White, Maple Fingerboard
• 0191600700 / 3-Color Sunburst, Rosewood Fingerboard
• Series : American Standard

Body

• Body Material : Alder
• Body Finish : Gloss Polyurethane
• Body Shape : Dimension Bass™

Neck

• Neck Material : Maple
• Neck Finish : Hand-Rubbed Oil Finish with Gloss Urethane Headstock Face
• Neck Shape : Asymmetrical "C"
• Scale Length : 34" (864 mm)
• Fingerboard Radius : 9.5"-14" Compound Radius (241 mm-355.6 mm)
• Number of Frets : 21
• Fret Size : Medium Jumbo
• String Nut : Synthetic Bone
• Nut Width : 1.625" (41.3 mm)
• Position Inlays : Black or White Dot
• Truss Rod Nut : Heel-Mounted Spoke Wheel Adjustment
• Neck Plate : 5-Bolt Asymmetrical

Electronics

• Bridge Pickup : Dimension™ Humbucking
• Middle Pickup : Dimension™ Humbucking
• Controls : Volume 1. (Middle Pickup), Volume 2. (Bridge Pickup), Master Tone
• Pickup Configuration : HH

Hardware

• Bridge : Fender Hi-Mass with Chrome-Plated Brass Saddles
• Hardware Finish : Chrome
• Tuning Machines : Fender "F" Light-Weight Vintage-Paddle Keys with Tapered Shafts
• Pickguard : 3-Ply Black
• Control Knobs : Knurled Flat-Top

Miscellaneous

• Strings : Fender® USA Bass 7250M, NPS (.045-.105 Gauges)
• Unique Features : Asymmetrical Neck Heel, Stealth String Retainer, Heel-Mounted Spoke Wheel Truss Rod Adjustment, Vintage-Style Knurled Control Knobs, 5-Bolt Neckplate
