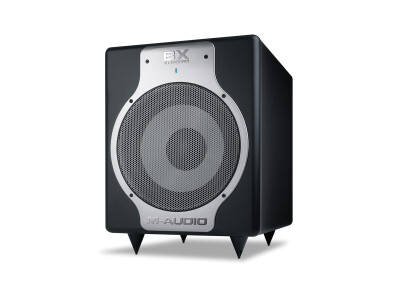

M-Audio BX Subwoofer

• Fabricant : M-Audio
• Modèle : BX Subwoofer
• Série : BX Carbon
• Catégorie : Caissons de basses pour le monitoring
• Fiche créée le : 20/11/2014

Caisson de basse actif utilisé en complément des enceintes de monitoring BX Carbon.

• Type: Bass-reflex active powered subwoofer
• Woofer Driver: 10-inch composite (treated paper/fiberglass) cone with high-temperature voice coil and damped rubber surround
• Frequency Response: 20-200Hz (-3dB)
• Crossover: HP/LP linked filter sweepable from 50-200Hz; 24dB/octave 4th-order alignment
• Input Sensitivity: 80mV pink noise input produces 100dBA output SPL at one meter with vol
• Adjustable Gain: (-30dB to +6dB)
• Amplifier: 240 watts average power into 4, discrete transistor design
• Signal-To-Noise Ratio: 96dB (A-weighted)
• THD at Rated Power, Mono Mode: 0.019%
• Inputs: Two XLR balanced/unbalanced inputs; two TRS balanced/unbalanced inputs; two unbalanced RCA
• Outputs: Two XLR balanced/unbalanced outputs for satellites; two TRS balanced/unbalanced outputs for satellites
• Controls: Volume/gain control, phase inverse switch, variable crossover control, subwoofer bypass footswitch jack
• Input Impedance: 20k ohms balanced, 10k ohms unbalanced
• Maximum Input Level: +20dBU
• Protection: Over temperature, turn-on/off transient, subsonic filter, external mains fuse, DC protection, over current protection
• Indicator: Power on (blue) or standby/bypass (red)
• Power Requirements: Dual-voltage (selectable by rear-panel switch) for either 100-120V/~50/60Hz or 220-240V/~50/60Hz; powered via detachable grounded IEC cable
• Cabinet: Vinyl-laminated high-density internally braced 3/4” MDF cabinet with 1” front and back baffles
• Dimensions: 15.5 in. (h) x 13 in. (w) x 17.25 in. (d); 39.4 cm (h) x 33 cm (w) x 43.8 cm (d)
• Shipping Weight: 54.6 lbs.; 24.75 kg

Source : http://www.m-audio.fr/products/view/bx-subwoofer

Distribué par M-Audio/LaBoiteNoireDuMusicien
