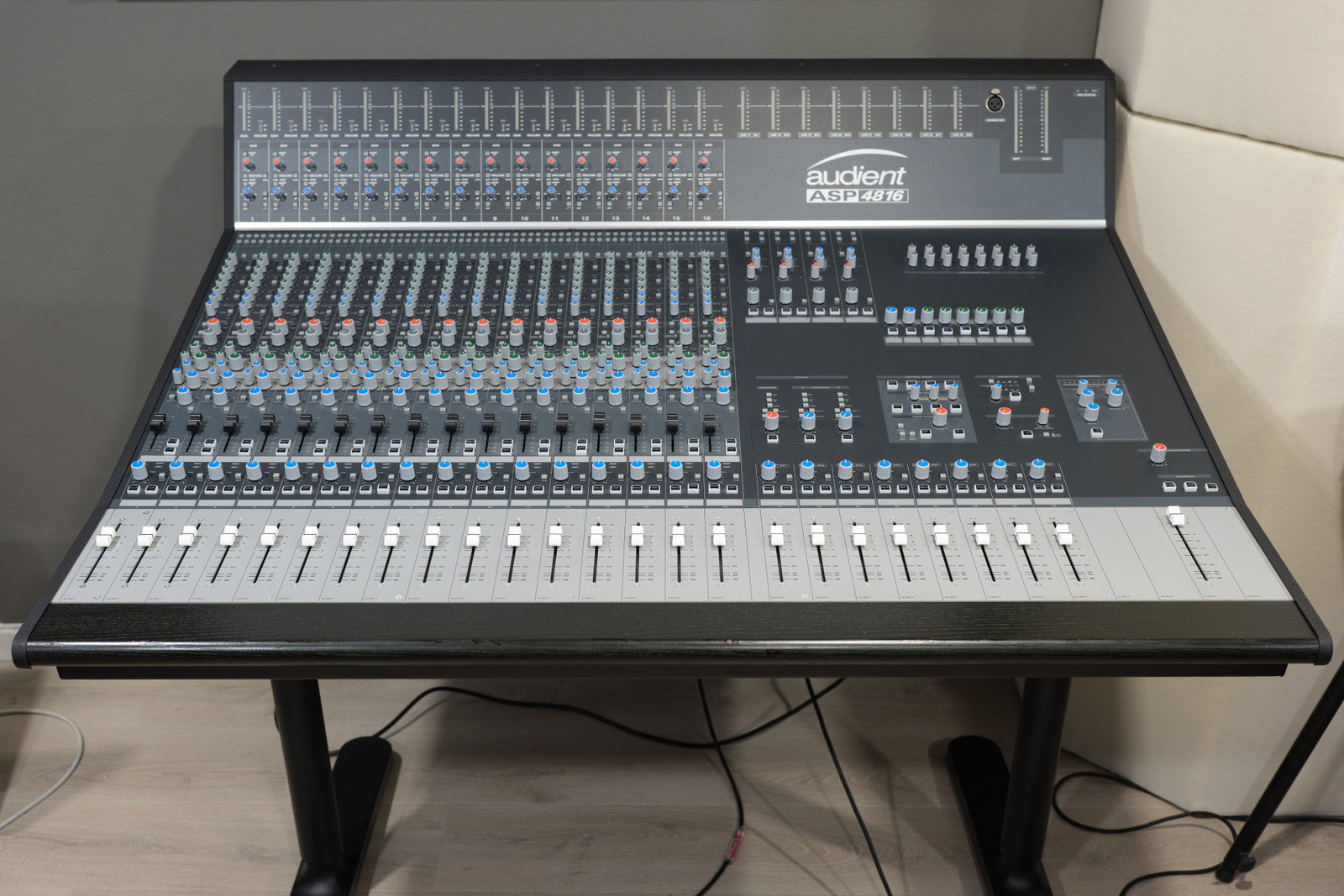

Fiche technique
- Fabricant : Audient
- Modèle : ASP4816
- Catégorie : Consoles analogiques
- Poids du colis : 91.9 kg
- Autres dénominations : asp 4816, asp4816
- → In-line architecture - twin inputs on each channel
- → 40 faders
- → 48 inputs at mix
- → 16 Audient Class-A mic pres
- → 16 channels of EQ
- → 16 record buses
- → 6 auxes, 2 cue sends
- → Stereo bus compressor

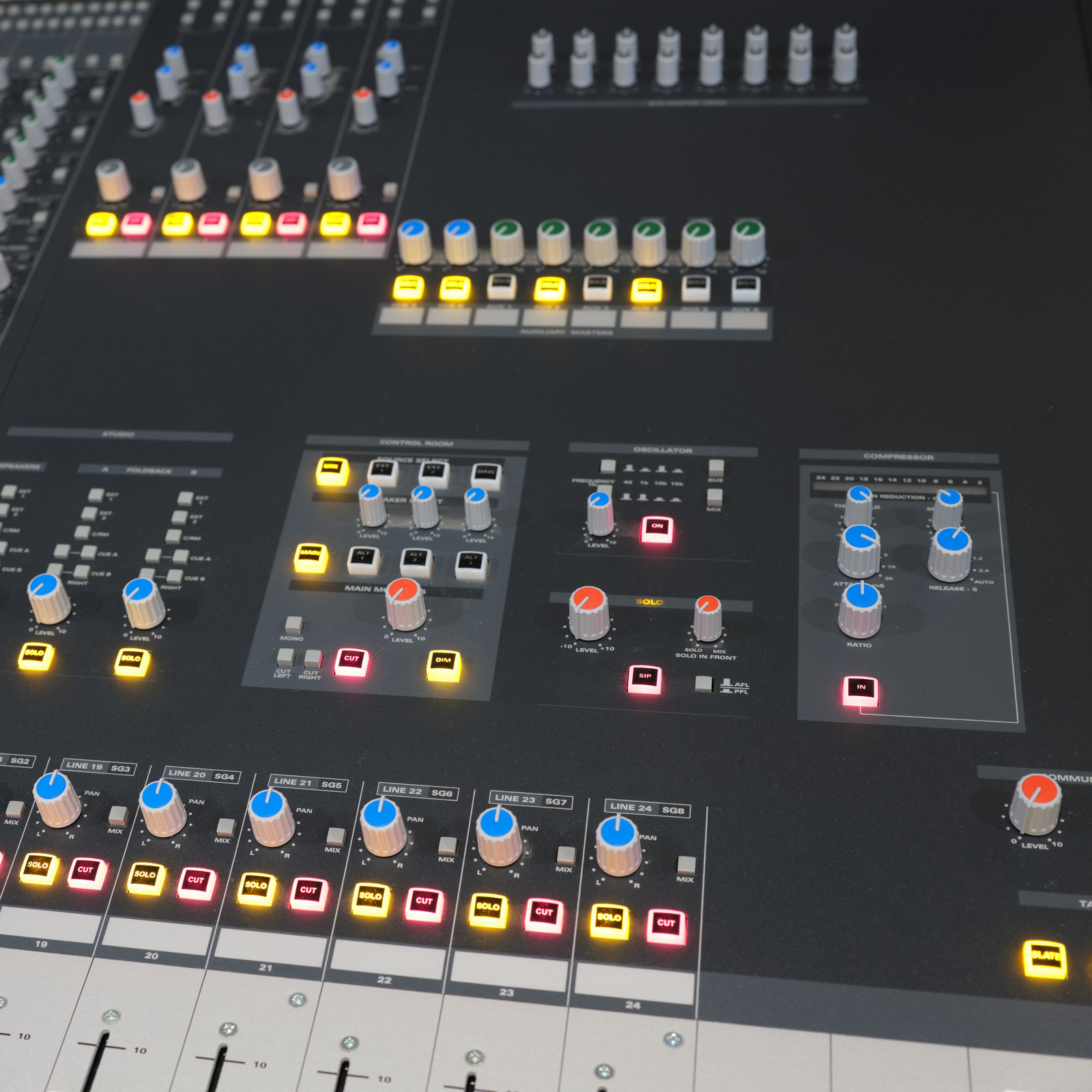

- → Comprehensive monitor section
Frequency Response
Mic input to Mix output <+0,-0.3 dB 20Hz-20kHz @ 6-40 dB gain.
Line input to Mix output <+0,-0.3 dB 20Hz-20kHz @ 0 dB gain.
T.H.D. and Noise at +20 dB Output
Mic XLR input to any output <0.005% at 1kHz
Line input to any output <0.005% at 1kHz
Tape input to any output <0.003% at 1kHz
Noise
Mic EIN (20-20kHz, 150R source) <-127.5 dBu
Bus noise (no inputs routed) <-93 dBu
Bus noise (36 inputs routed) <-78 dBu
Mic C.M.R.R.
70 dB (Min gain) 75 dB (Max gain)
Crosstalk and Mute Attenuation at 1kHz
Short fader Mute >90 dB
Long fader Mute >90 dB
Mix assign >90 dB
Bus assign >90 dB
Maximum Input
Mic >+21 dBu (min gain)
Line >+30dBu (min gain)
Insert return >+21dBu
Maximum Output Into 2 kΩ
Mix output >+26 dBu
Bus output >+26 dBu
Aux output >+26 dBu
Insert send >+20 dBu
Monitor, Studio, F/B outputs >+20 dBu
Distribué par Audio-Technica Europe
