Finegear Mixerblocks

• Fabricant : Finegear
• Modèle : Mixerblocks
• Catégorie : Consoles analogiques
• Fiche créée le : 31/01/2018

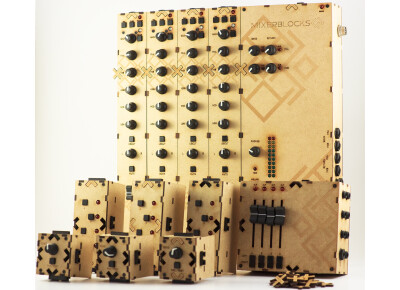

Console de mixage analogique modulaire en kit DIY

MAIN DOCKING BLOCK
The central block for any Mixerblocks console, it powers the channels,
it sums up the signals, and sends them to the (balanced) outside world.
The signals routed by the Main Docking Block are: the stereo master
mix, the stereo submix, two FX sends, their two-respective effect
returns, a solo bus (for the phones output), the incoming signals from
the extra-blocks.
The master and the submix buses also have FX inserts and balanced
outputs. A stereo 10 segment LED vuMeter helps visualizing the output
signal while strategically placed clipping LEDs indicate if any signal
saturates.
BASIC CHANNEL BLOCK
This block contains all the features/modules for a complete channel
strip: balanced XLR/jack input, input amp, padding, phase invert,
phantom power, EQ, pan, FX sends, master bus and submix bus
routing, mute, solo, 60 mm fader, DIYRE Colour insert slot, insert jack).
A signal intensity and a clipping LED give visual feedback of the
channel’s audio signal.
It is powered by, and it sends its signals to the Main Docking Block.
“EXTRA” BLOCKS
The extra-blocks connect to the back of a channel or to the back of
any other extra-block, as well as between themselves and between
channels — right to left — to form a row.

A row of extra-blocks is connected to a corresponding Extra-Docking-
Block which routes the “extra” signals into the Main Docking-Block, thus

adding them to the main mix bus.
POWER SUPPLY
A power supply from Total Audio Control is also available at the shop.
