NTP 575 Asynchronous AES/EBU switcher

Description

NTP 575 Asynchronous Aes/ebu switcher :

16 x 16 aes/ebu switcher full broadcast-quality :

•Fully Self-contained with built-in Control Panel and Power Supply.
•Full Asynchronous Operation (28 - 54 kHz sampling rate).
•All Inputs are Re-clocking types.
•Transformer balanced inputs and outputs.
•8-character displays for source- and destination-names.
•Editing of source- and destination-names from build-in Control Panel.
•Up to 10 set-ups can be memorized and activated with one key-stroke from the built-in Control Panel.
•PC Software for remotely controlled operation

Status displays.

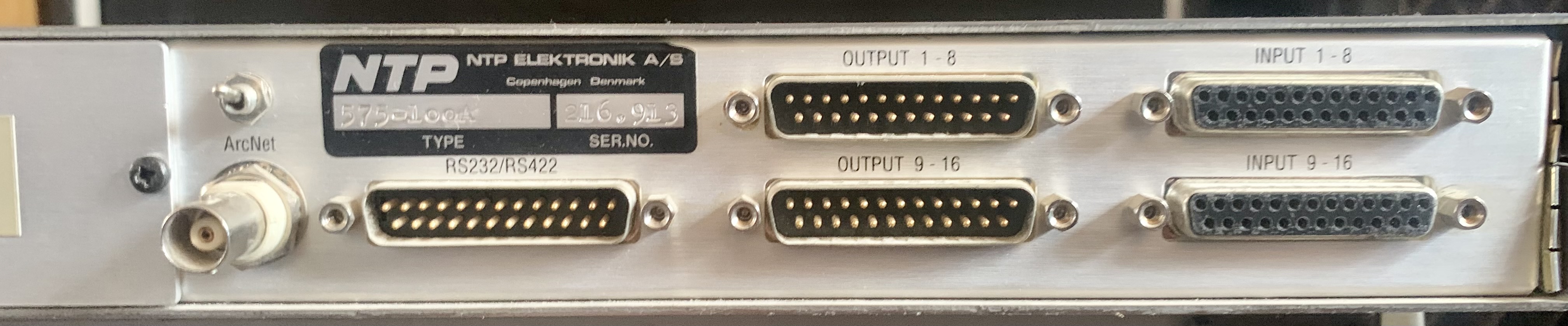

The frontpanel comprises three easy-to-read 8-character displays, indicating the actual source and destination status as well as any preset selections made. 8-character names may be used for source and destination identification. These names can be edited from the front panel or downloaded via a serial control port. Versatile control.The 575-100 is controlled via the front panel. The buttons are used for "scrolling" through the list of source and destination names, which are arranged in alphabetical order in the Preselect and Destination display. The Source display shows the source actually connected to the selected Destination.Pressing the TAKE or RELEASE button confirms the preset selections made. Up to 10 Set-up's can be memorized and activated with one key-stroke by means of the pushbuttons on the front panel.The 575-100 can be remotely controlled as well, via a serial port situated, on the rear (configurable as RS232 or RS422), or the NTP Network Interface, using a simple ASCII based control protocol.In this way, the 575-100 may be used as a "stand alone" unit, or controlled from existing and future NTP switching system controllers.
