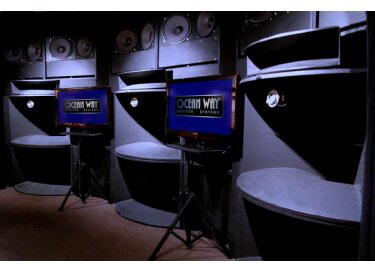

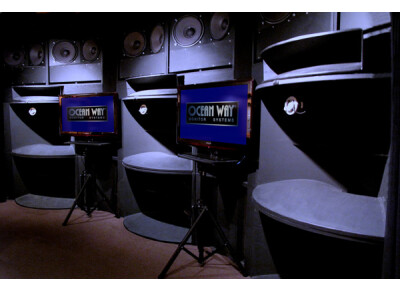

Ocean Way Audio HR1 System

Technical description:
The HR1 is a four way quad amplified high resolution monitor system which includes the Ocean Way tonal balance equalization system and electronic crossover.

Component description:

• Sub Bass Enclosures 32"x24"x32" approx. 220lbs (Two cabinets per channel - each with dual 15" Alnico 5 woofers with 18Hz cone resonance)
• Mid Bass Enclosures 43"x33"x84" approx. 310lbs (Two cabinets per channel - Front loaded horn 40 degree by 90 degree each with dual 15" bass woofers)
• Mid Range Radial Horns (A pair of 40 degree by 90 degree 400Hz dual cross firing throats with dual 20,000 Gauss Alnico 5 3" diaphragm drivers)
• High Frequency (A pair of 18,000 Gauss magnetic structures with 2" aluminum direct radiating domes with Mylar surrounds.

Specifications:

• Frequency response +/- 2dB 20Hz- 20kHz
• Symmetry between channels +/- .5dB 1k to 20kHz
• Maximum SPL- Over 118dB at 6 feet 20 to 20kHz (as measured in this installation)
• Maximum Power Handling Capacity:
• Ultra High Frequency Driver max 50 watts continuous 10kHz and up
• Mid Range Horn Drivers max 100 watts continuous
• Mid Bass Woofers max 400 watts continuous
• Sub Bass Woofers max 200 watts continuous
• High Frequency Horn with 90 degree by 40 degree dispersion has 400Hz cut off
• Crossover points 50Hz, 650Hz , and 10kHz 18dB per octave
