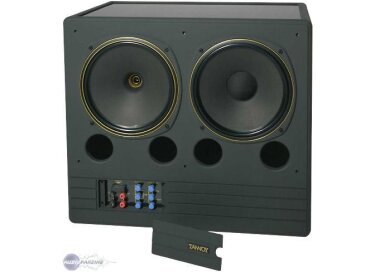

Tannoy 215 DMT II

• Fabricant : Tannoy
• Modèle : 215 DMT II
• Catégorie : Enceintes de monitoring passives
• Fiche créée le : 08/03/2008

TECHNICAL SPECIFICATIONS
LOUDSPEAKER
Frequency response (1)              35Hz – 25kHz
Recommended amplifier power    150 to 500 w rms into 8 Ω
Power handling                             Average: (2) 250 wrms  Programme: 500 wrms
Nominal Impedance                      4 or 8 Ω
Sensitivity (3)                               104 dB SPL /2.83V @ 1 m
Distortion                                     < 0.5%
Crossover frequency                   250Hz & 1.5 kHz
CABINET
Drive units                                  15" full range, Point Source, Dual Concentric™
                                                   15" bass unit
Low frequency design                 Optimised bass-reflex loaded, in 300 litres
Cabinet construction                   MDF (36mm - front and back; 20.6mm - top, bottom and
                                                   sides) with energy absorbing bracing matrix and TF-2
                                                   acoustic wadding.
Cabinet finish                             Velti shadow grey soft-texture finish. High pressure twin
                                                   laminate in shadow grey with metallic speckled finish on
                                                   top, bottom and sides
Cabinet dimensions (HxWxD)     786 mm x 906 mm x 555 mm
                                                  (30.9" x 35.7" x 21.8mm)
Cabinet weight                           85kg (187 lbs)
Shipping dimensions (HxWxD)   1020mm x 860mm x 660mm
                                                  (40.2" x 33.9" x 26")
Shipping weight                          96kg (221.2 lbs)

NOTES:
(1) ±3dB, measured at 1m in anechoic chamber
(2) Long term power handling capacity as defined in EIA
standard RS426A
(3) Averaged over specified bandwidth for half-space
environment. For anechoic conditions the figure is to be
decreased by 3dB
Tannoy operates a policy of continuous research and
development. The introduction of new materials or
manufacturing methods will always equal or exceed the
published specifications, which Tannoy reserves the right to
alter without prior notice. Please verify the latest
specifications when dealing with critical applications
