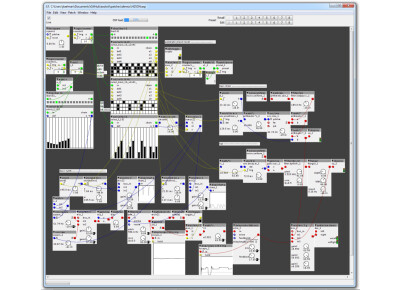

Axoloti Patcher

• Seamless edit/compile/upload/adjust with a simple “live” button
• Wire datatypes for booleans (yellow), integers (green), fractional numbers (blue), and audio fractional number buffers (red)
• Seamless readback of live data in the patch: VU-meters, chart plotter, oscilloscope, spectrum analyzer…
• Object “input type overloading”: objects can adapt to the type of connected inputs
• Object selector with search
• Cut/copy/paste (using plain text XML)
• Midi mappable controls
• Parameter modulation
• Sub-patching (using a patch as an object in another patch)
• Presets
• Midi polyphonic voice allocation

Axoloti object library:

• Input/output
  • audio input
  • audio output
  • digital in (including optional pullup or pulldown configuration)
  • digital out (push-pull or open-collector)
  • analog in
  • digital PWM outputs
• LFO’s
  • sine
  • saw
  • square
• Oscillators
  • sine
  • saw
  • square
  • pulse-width modulation
  • saw with sync
  • square with sync
• Envelopes
• Filters
  • lowpass biquad
  • bandpass biquad
  • highpass biquad
  • lowpass 1st order
  • highpass 1st order
• MIDI
  • controller in
  • controller out
  • keyboard (incl. velocity, release velocity, polyphonic pressure)
  • bend in
  • bend out
  • channel pressure
• Mixer
  • 1,2,3,4… channel input mixer
  • crossfader
• Logic operators
• Tables
  • similar as in Pure Data
• Echo
• Delay lines
  • similar as in Pure Data
• Displays
  • VU-meter
  • chart-plotter
  • oscilloscope
  • bandpass-filter based spectrum analyzer (constant-Q)
  • FFT-based spectrum analyzer
• Math
  • Logarithm
  • Exponent
  • Square root
  • Reciprocal
  • Sine/cosine
• Distortions
  • Soft saturate (non-antialiased)
  • infinite gain clipping (alias-free)
