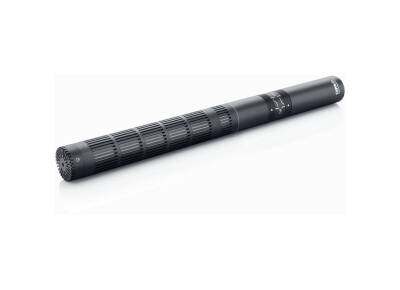

DPA Microphones 4017B

Name: 4017B
Brand: DPA Microphones
SKU: 128535

Écrire un avis ou Demander un avis

Avis

Petites annonces

Forums

Sommaire - accès rapide

Acheter neuf DPA Microphones 4017B

Alerte nouvelle annonce

Voir les 11 photos du DPA Microphones 4017B

Directional characteristics	Supercardioid, lobe-shaped
Principle of operation	Pressure gradient, with interference tube
Cartridge type	Pre-polarized condenser
Frequency range	20 Hz - 20 kHz, permanent third order high pass filter at 50 Hz
Frequency range, ± 2 dB, at 60 cm	70 Hz - 18 kHz with typ. 3 dB soft boost at 15 kHz
Sensitivity, nominal ± 2 dB at 1 kHz	19 mV/Pa; -34.4 dB re. 1 V/Pa
Equivalent noise level, A-weighted	Typ. 13 dB(A) re. 20 µPa (max. 15 dB(A))
Equivalent noise level, ITU-R BS.468-4	Typ. 24 dB (max. 26 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)	Typ. 80 dB(A)
Total Harmonic Distortion (THD)	< 1 % up to 133 dB SPL peak
Dynamic range	Typ. 119 dB
Max. SPL, peak before clipping	138 dB
Filters	High boost: +4 dB at 8 kHz. Low cut: First order filter, below 120 Hz
Output impedance	< 150 ohm
Cable drive capability	100 m (328 ft)
Output balance principle	Signal balanced
Common Mode Rejection Ratio (CMRR)	> 40 dB
Power supply	48 V Phantom power (± 4 V)
Current consumption	4.5 mA
Connector	XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: signal - phase
Color	Matte black
Weight	68 g (2.4 oz)
Microphone diameter	19 mm (0.75 in)
Capsule diameter	19 mm (0.75 in)
Microphone length	212 mm (8.3 in)
Output voltage, RMS	> 1.8 V
Polarity	+V at Pin 2 for positive sound pressure
Temperature range	-40 °C to 45 °C (14 °F to 113 °F)
Relative Humidity (RH)	Up to 90 %
