Koma Elektronik Field Kit

• Fabricant : Koma Elektronik
• Modèle : Field Kit
• Catégorie : Autres synthétiseurs/racks
• Fiche créée le : 14/12/2016

Workstation électro-acoustique permettant d'amplifier et de traiter des signaux sonores provenant de tous types de micros

process signals from microphones, contact microphones, electromagnetic pickups and run DC motors and solenoids

receive radio signals and convert signals from switches and sensors into control voltage

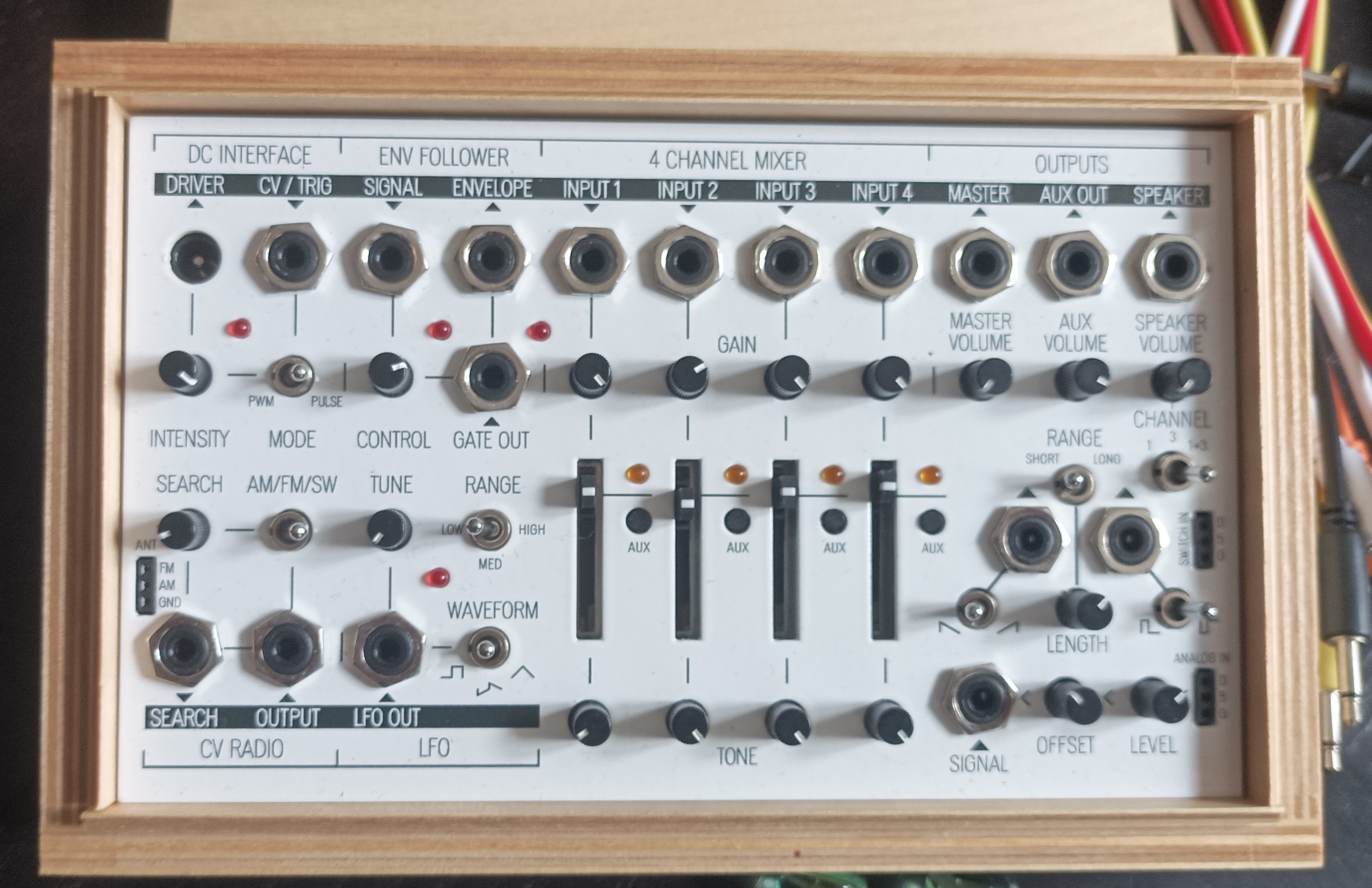

7 separate functional blocks all focussed on receiving  or generating all types of signals. They are designed to operate together as a coherent electroacoustic workstation or alternatively together with other pieces of music electronics with the ability to use control voltage signals:

The Four Channel Mixer is the beating heart of the Field Kit, providing a fully functional mixer with individual Gain, Mix Level and Tone control over each channel and individual Master- and Aux sub-mixes.

The level of the Master and Aux Channels can be set with the Master Volume and Aux Volume controls and the channels being sent to the Aux sub-mix can be set with dedicated Aux Select-buttons. The Aux sub-mix is pre-fader.

CV-controllable radio receiver capable of receiving radio frequencies on AM/FM and SW bands. Additionally it provides the ability to catch electromagnetic waves for further processing inside the Field Kit. The frequency of the radio can be set with a dedicated multifunctional Search-control which acts both as a manual CV-source and as an input attenuator for a CV-signal.

The Field Kit comes with three connectors to attach needed antenna's for both FM and SW bands and a loop antenna connector for AM signals.

Envelope Follower in the Field Kit applies two functions to the waveform you send to the input: full-wave rectification (mirroring of negative portions of the waveform) and low-pass filtering (averaging). It can also be used for frequency doubling of a signal, which is a great tool to have in the electroacoustic domain.

In addition to the Envelope Out, the Envelope Follower inside the Field Kit also gives out a gate signal whenever the level of the input signal is high enough. The input signal level can be set with a dedicated Attenuation-control.

Low Frequency Oscillator generates periodically varying voltages to be used as control signals. The output waveform can be set with a three-position Waveform-control and gives out either a Square-, Triangle- or a mix of Square and Triangle waveforms.

The frequency of the LFO can be set together with a dedicated Frequency-control and a three-position Range-control. With the higher range-settings, the frequency of the LFO reaches into the audio-range so the LFO can also be used as a simple drone sound source, send this is into a delay effect and you can make trippy sounds for hours!

DC Interface. You can use its output voltages to run little motors, fans, solenoids, buzzers and control them with control voltage signals. You can pick up the vibrations and electromagnetic waves with the contact microphones and electromagnetic pickup.

The DC Interface can be used together with PWM (Pulse Width Modulation)- or Pulse-controlled devices. An example of a PWM-controlled device is a DC-motor of which the rotation speed can be set by varying the pulse width. A Pulse-controlled device can be a solenoid-motor whose impulse strength/distance can be set with the length of the control pulse. Other devices that can be used together with the DC Interface could be computer fans, LEDs, relay switches,  etc.

The operation mode of the DC Interface can be set with a two-position Mode-switch and there is a multifunctional Intensity-control and a CV/Trigger-input whose functions are dependent on the mode of use and whether a jack is present at the CV/Trigger-input.

The Field Kit Expansion Pack comes with both a prepared DC-motor and a prepared solenoid-motor ready to be used together with the DC Interface or alternatively the user can prepare devices on his/her own.

Signal Interface is a nifty toolset to transform the raw signals of a wide variety of sensors and switches into signals that can be used with the Field Kit or other gear. This means you can trigger or control sound by light, heat, humidity, distance, speed, acceleration, proximity, pressure, force, level, all depending on what type of switch or sensor you are using! Ideal for sound installations!

The Signal Interface consists of two parts, the Switch and the Sensor Interface.

The Switch Interface transforms signals from different switches like buttons, ball- or tilt-switches etc. into four different types of gate signals. It can output gates, inverted gates, ramp or sawtooth triggers of adjustable length (1ms to 1s). It has two outputs that can be used at the same time, so you could drive a motor and scan the CV Radio with the same switch! The output-voltage spans a range from 0V to about 8V.

The Sensor Interface is made to manipulate the output voltage of analog sensors, like light-, heat- or distance-sensors and convert their signals into control voltage. It can amplify or attenuate the incoming signal and add a DC-offset, so you can for instance set the motor to a constant speed and make it run faster by outputting a higher voltage from the sensor.

The maximum output-voltage is about 8V. It provides enough current to power an Arduino!

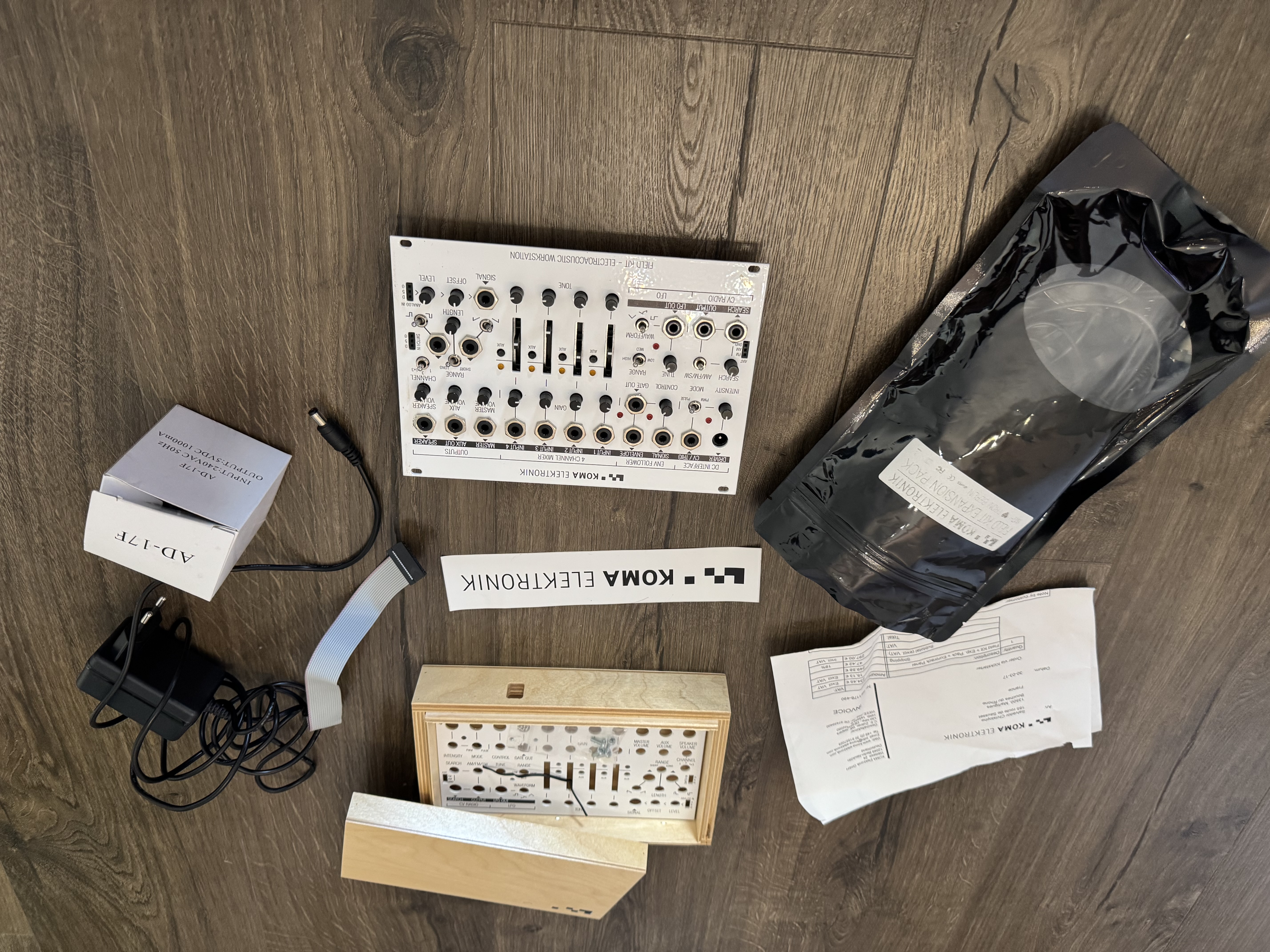

interface the Field Kit with a Eurorack modular system. At the backside of the PCB you will find a power connector you can use to power the unit from your system. The total panel width will be 36HP.

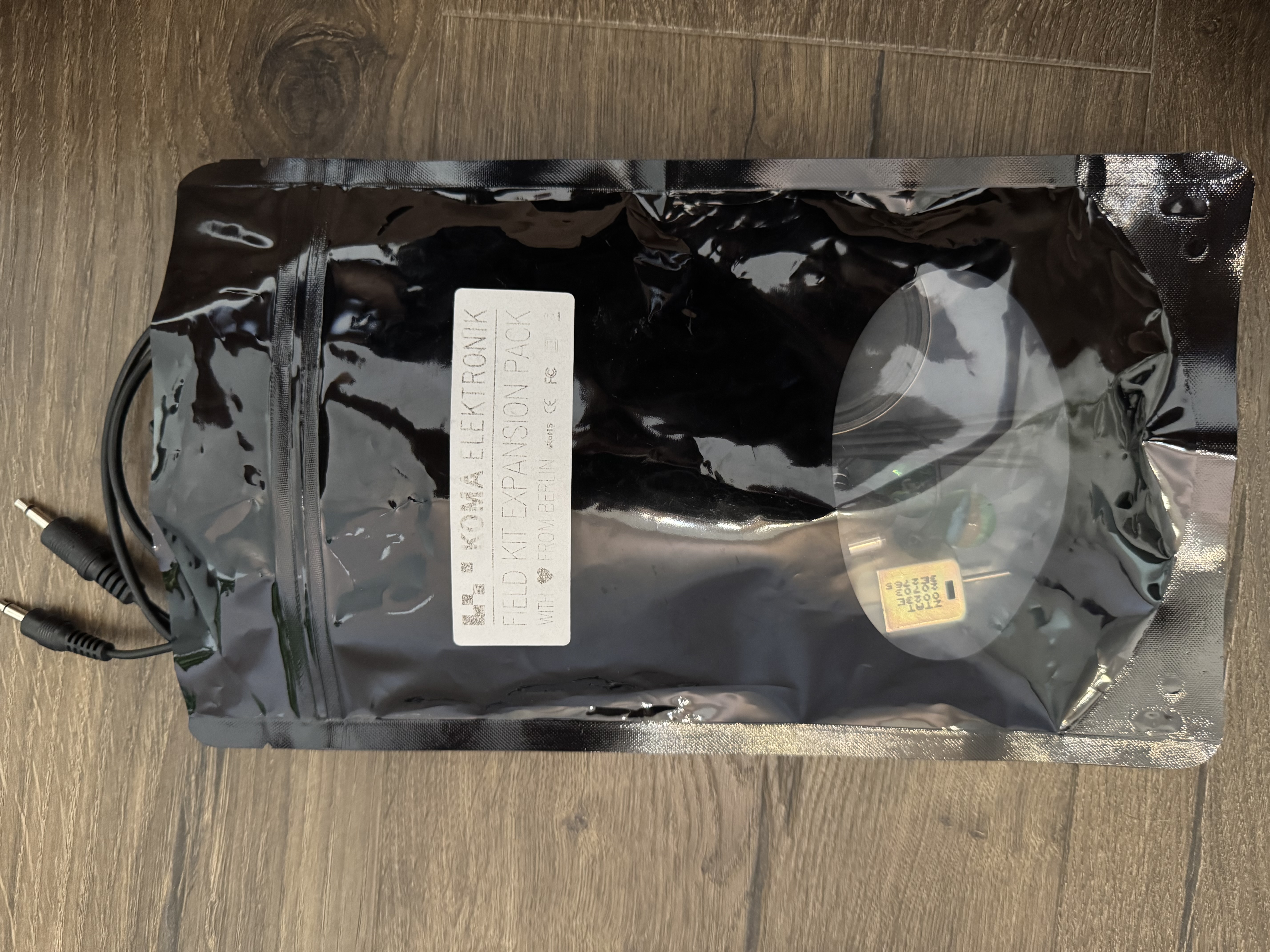

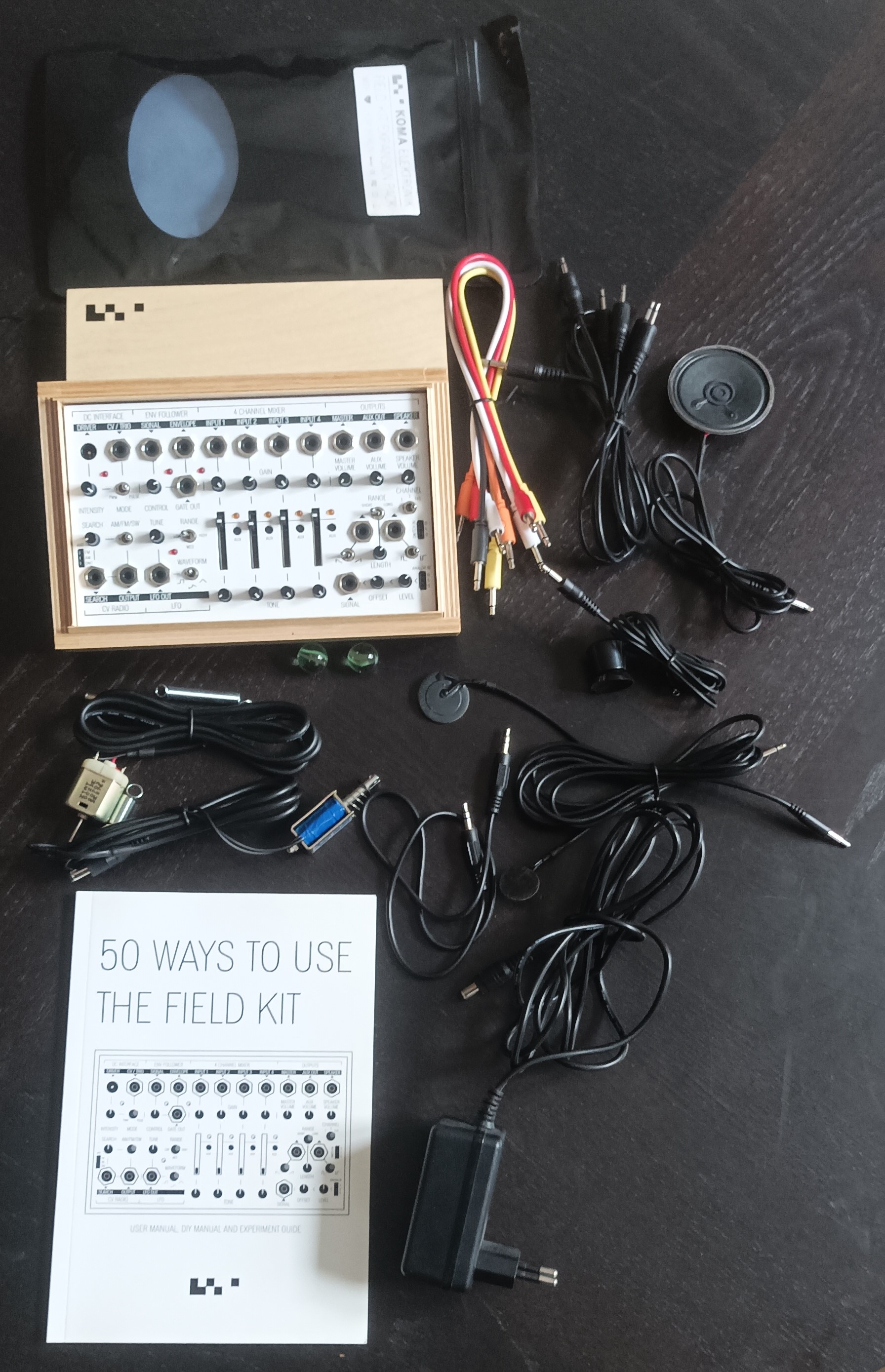

The Expansion Pack contains:

• 2 x Contact Microphones
  Use these contact microphones to pick up vibration or sound, they are an amazing versatile input source.
• 1 x Electro-Magnetic Pickup
  This guy is good at picking up changes in magnetic fields, you can use it to amplify a string like a guitar pickup or amplify a spinning motor.
• 1 x Solenoid push-pull motor
  Use the solenoid to hit things, together with the DC Interface the solenoid can make anything rhythmical and percussive.
• 1 x DC motor
  The Motor can be used to rotate things or as a noisy oscillator together with the Electro-Magnetic Pickup.
• 1 x small speaker
  Use the speaker to listen to the main mix or as a sound source and to feedback sounds.
• 3 x patch cables Always handy to have around to patch up different parts of your Field Kit.

  ...and a bunch of little objects to play with (little springs, clamps etc.)

In the book and manual 50 Ways To Use The Field Kit that will be shipped with every Field Kit we will show you how you can make different sensors and input sources for your Field Kit, to experiment away!

You can get the Expansion Pack as a separate reward or get it in a bundle with the Field Kit.

MRSP Pricing Expansion Pack: 59,00 EUR (incl. 19% VAT)
