réactions à la news Dave Smith va lancer un nouveau synthé

  • 36 réponses
  • 17 participants
  • 4 165 vues
  • 22 followers
Sujet de la discussion Dave Smith va lancer un nouveau synthé
Dave Smith nous met l’eau à la bouche depuis la semaine dernière en annonçant un nouveau produit, prévu normalement cette semaine.

Lire la news



Ce thread a été créé automatiquement suite à la publication d'une news pour ce produit. N'hésitez pas à poster vos commentaires ici !
Afficher le sujet de la discussion
21
le prophet 12 en rack avec les potards comme sur la version clavier ;)
22
Ben non, le Rack version clavier...

Le plus majestueux des chênes n'était autrefois rien d'autre qu'un pauvre gland...



transmission-soundcloud



23
bon bin pas ce que je cherche en fait...
24
Citation :
bon bin pas ce que je cherche en fait...


Eh, Nedd, c'est de la spéculation, hein...;)

Le plus majestueux des chênes n'était autrefois rien d'autre qu'un pauvre gland...



transmission-soundcloud



25
espérons que ce nouveau joujou de chez Dave Smith Instruments soit à un prix abordable pour tous :((
26

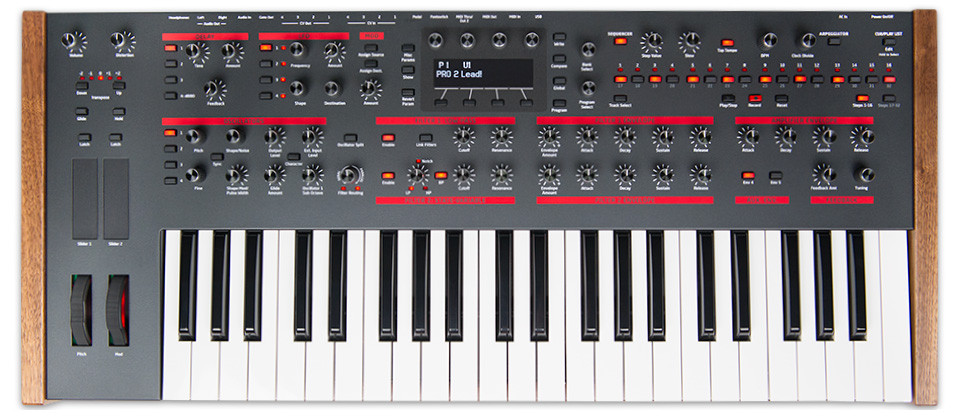

Et BIM: https://www.davesmithinstruments.com/products/pro2/index.php

Citation de DSI :



Oscillators

  • Four DSP-based oscillators plus one sine wave sub oscillator
  • Four classic wave shapes (saw, square, triangle, sine) per oscillator
  • Twelve selectable complex shapes per oscillator
  • 13 Superwaves
  • Three noise types per oscillator: white, pink, violet
  • Shape modulation/pulse width/superwave detune amount
  • Oscillator cross modulation: frequency modulation (FM) and amplitude modulation (AM)
  • Hard sync, individual Glide, Oscillator Slop

Paraphonic Playability

  • True 4-voice paraphonic mode with individually-gated envelopes per oscillator

Character Effects

  • Five high-quality digital effects. Thicken the signal and add harmonics or completely destroy the signal pre-filter.
  • Girth and Air are high and low shelf equalizers with harmonic excitement. Useful for thickening and/or adding air to the signal.
  • Hack and Decimate are sample and bit rate reduction algorithms which can add subtle grit or completely trash the signal. It's harsh yet musical.
  • Drive is a soft saturator for adding soft distortion and harmonic content to the signal

Filters

  • Dual analog filters operate in serial or parallel
  • Filter 1 is a 4-pole resonant analog low-pass filter inspired by the original Prophet-5 filter.
  • Filter 2 is a 2-pole resonant analog state-variable filter inspired by the Oberheim SEM filter and can be continuously varied between low-pass, notch, and high-pass operation, with an optional band-pass mode.
  • Oscillator Split allows oscillators 1 & 2 to be sent to Filter 1 and oscillators 3 & 4 to Filter 2.

Feedback and Delay

  • Tuned Feedback
  • Three-tap syncable delay with feedback and amount controls, pan, and high-pass and low-pass filtering, all per delay. A separate fourth delay is a digital bucket-brigade delay (BBD) for analog-style effects.

Envelopes

  • Five Delay + ADSR envelopes (Filter 1, Filter 2, VCA , and two Auxiliary envelopes)
  • Auxiliary envelopes 4 and 5 freely assignable to multiple modulation destinations
  • All envelopes can repeat/loop

LFOs

  • Four syncable LFOs with phase offset and slew per LFO

Modulation

  • 16 x 2 modulation matrix with over 50 mod sources and over 140 mod destinations
  • Parameters that can be sent to CV outputs include oscillators, LFOs, envelopes, sequencer tracks and any other source within the modulation matrix. Runs up to audio rates.
  • Gate Out for triggering external CV-compatible devices; any CV in can be used as a gate input.

Control Voltage Ins & Outs and Gate Out

  • Four 1-volt-per-octave control voltage inputs and outputs for interfacing with modular synths and other CV-compatible devices
  • Modulation assignment buttons enable quick and easy modulation routing.
  • Mod Matrix runs up to audio rates.

Sequencer

  • Advanced step sequencer provides up to 32 steps per sequence and up to 16 tracks.
  • Supports real-time input, rests, and variable-length sequences
  • Syncs to MIDI clock and external audio and CV input
  • Sequences can control not only oscillator pitch but any parameter in the modulation matrix.

Arpeggiator

  • Sophisticated arpeggiator with up, down, up+down, random, assign modes
  • Supports real-time input, rests, and variable-length sequences
  • Re-latching arpeggiation

Programmable Distortion

  • Stereo analog distortion

Controls

  • More than 50 knobs and 65 buttons enable deep and comprehensive editing with minimal menu diving.
  • Backlit pitch and mod wheels are easily visible in low-light situations and have a smooth yet precise feel and response.
  • Independently adjustable upper and lower pitch wheel range
  • Two assignable position- and pressure-sensitive latchable touch sliders for enhanced interactivity and control
  • Full-sized, three-and-a-half-octave, semi-weighted keyboard with velocity and aftertouch

Memory

  • 396 user and 396 factory programs
  • Playlist mode for generating easily accessible setlists of your favorite programs

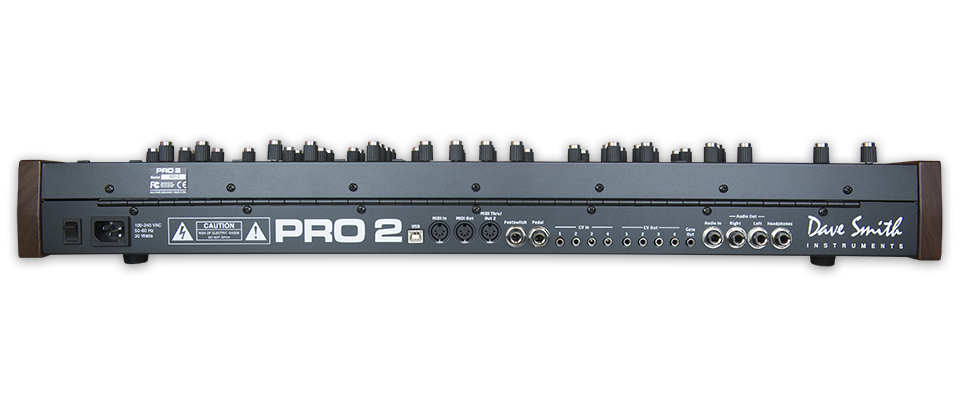

I/O

  • 1 MIDI In, 1 MIDI out, and 1 MIDI Thru/Out 2 port
  • USB port for bidirectional MIDI communication
  • 4 CV inputs (4 x 1/8" jack)
  • 4 CV outputs (4 x 1/8" jack)
  • 1 Gate Out (1/8" jack))
  • 1 Sustain/footswitch input
  • 1 expression pedal input
  • 1 external audio input (1/4" phone jack)
  • Main stereo output (2 x 1/4" phone jack)
  • Headphone out (stereo 1/4" phone jack)

Power

  • 1 universal IEC AC power inlet for internal power supply
  • Operates worldwide on voltages between 100-240v, 50-60Hz, 30 watts maximum power consumption

Physical Specs

  • Walnut end panels and trim
  • Dimensions: approximately 29.2" L x 12.8" W x 4.15" H (74.2 cm x 32.5 cm x 10.5 cm)
  • Weight: 18.7 lbs (8.5 kg)



[ Dernière édition du message le 19/06/2014 à 19:33:09 ]

27

Il parait bien sympathique ce PRO 2 !! icon_biggrin.gif

28
29
Prometteur :bravo:




Le plus majestueux des chênes n'était autrefois rien d'autre qu'un pauvre gland...



transmission-soundcloud



[ Dernière édition du message le 19/06/2014 à 19:54:24 ]

30

Quelqu'un a une idée du prix de la bête? https://medias.audiofanzine.com/images/thumbs3/1895067.gif

S'il n'y a pas de solution, c'est qu'il n'y a pas de problème.
