Custom Tones Ethos TWE-1

• Fabricant : Custom Tones
• Modèle : Ethos TWE-1
• Catégorie : Overdrives guitare
• Fiche créée le : 06/02/2024

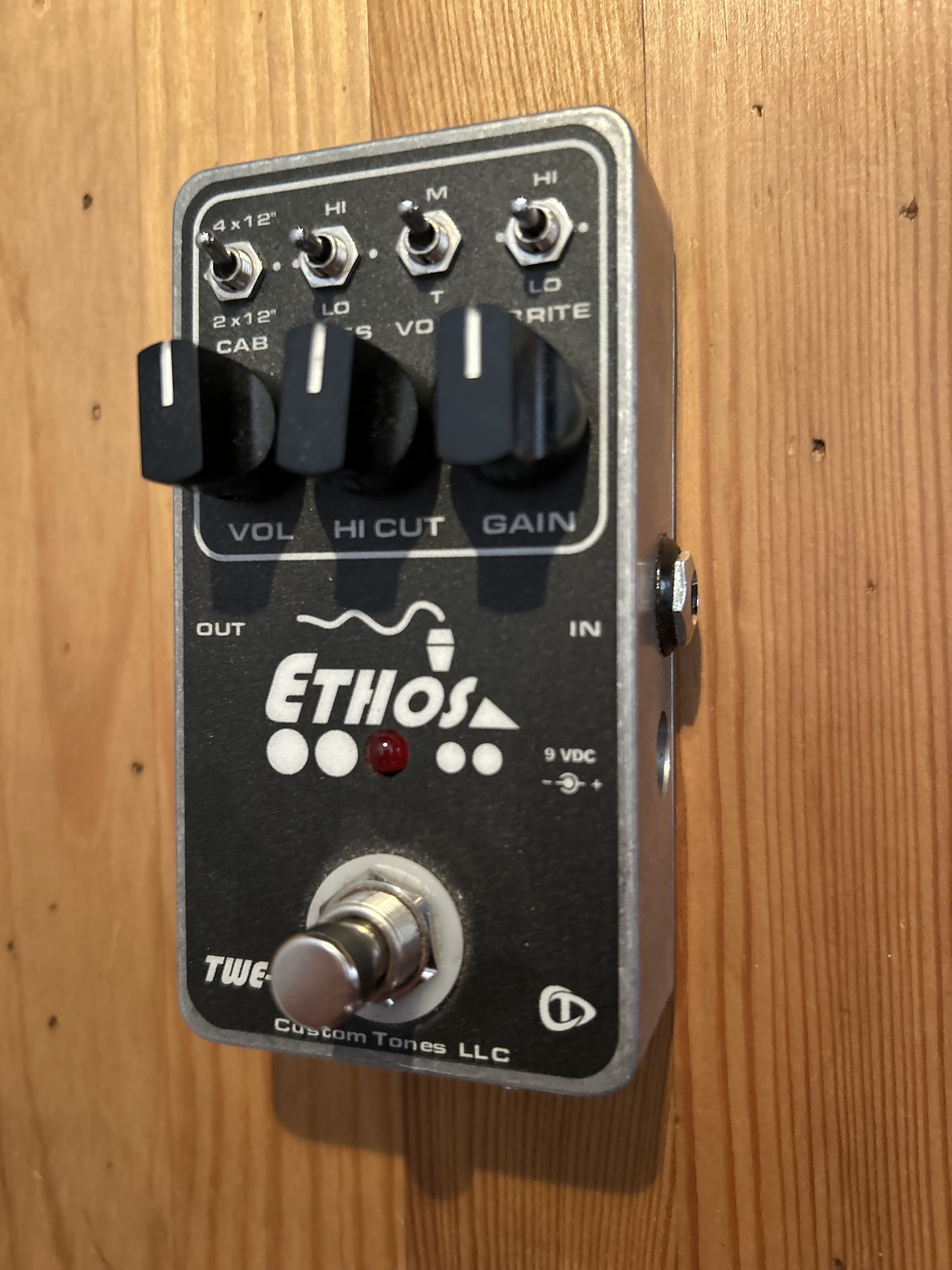

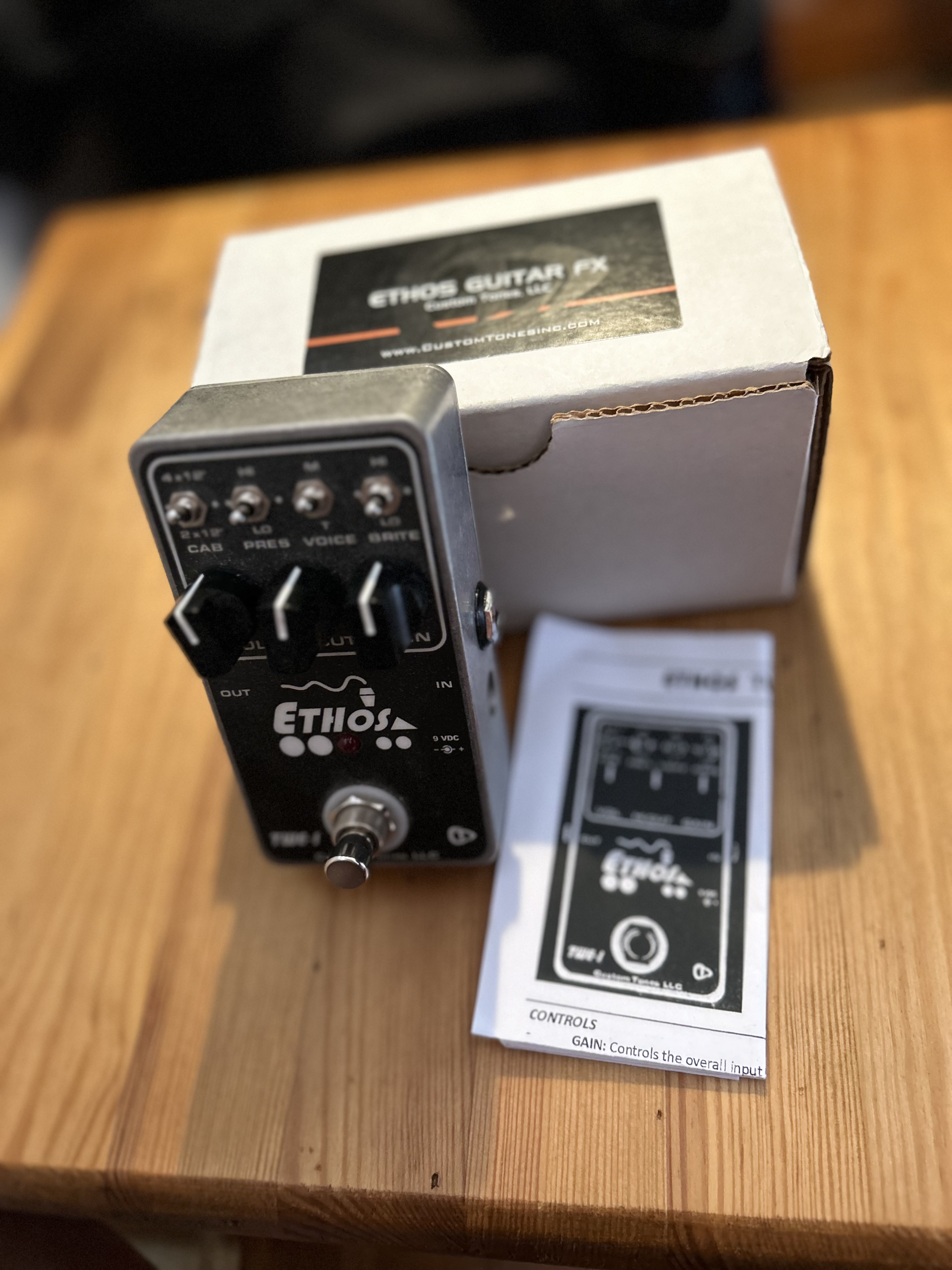

Custom Tones is very excited to introduce the Ethos TWE-1 overdrive pedal-preamp.

The Ethos TWE-1 is a compact, solid state analog design that offers touch sensitivity that can go from Clean-to-Scream with just the turn of your guitar's volume control.

The TWE-1's core design emulates the sound of a valve power amp being pushed to its limits, where it breathes and reacts to your playing.

The TWE-1 also offers powerful tone sculpting controls that allow you to tune the TWE-1 to your amp to get optimal tone.

ETHOS TWE-1 Specification Sheet (Rev A) CONTROLS
- GAIN: Controls the overall input gain of unit
- HI-CUT: Provides a post OD high frequency cut ideal for amp tuning
- VOLUME: Controls the overall volume of the unit
CONTOURING CIRCUITS
- BRITE: This circuit provides two levels of pre OD high frequency boost and an off setting. The degree of boost decreases as the GAIN control is increased.
o UP: maximum boost. Adds extreme top end clarity and should be set to get best clean-up performance when
using humbucker pickups.
o MIDDLE: OFF, Flat Band Response
o DOWN: Moderate boost ideal for adding sparkle to your tone.
- VOICE: Provides two distinct voices for the pedal post OD.
o T Position: Traditional Voice
o M Position: Modern British Voice
- PRESENCE: Provides three levels of post OD high frequency response. Ideal for matching the unit to your amp s top end response.
o UP: maximum boost. Adds top end bite. Best used with dark amps or when going into a flat band power amp
o MIDDLE: Flat frequency response
o DOWN: Darkest setting used best with a bright amp
- CAB: Provides three modes ideal for matching the unit to your amp s low end response.
o UP: 4x12 Adds extended low end boost
o MIDDLE: OFF, Flat Band Response
o DOWN: 2x12 Adds moderate low end boost

 INPUT IMPEDANCE: 1Meg ohm
 OUTPUT IMPEDANCE: 1kohm
 SIZE: 4.4" x 2.4" x 1.75" L x W x H
 POWER: Externally powered only 9VDC @ 25mA,
 POWER JACK: 5.5 mm x 2.1mm, center conductor negative (-)
