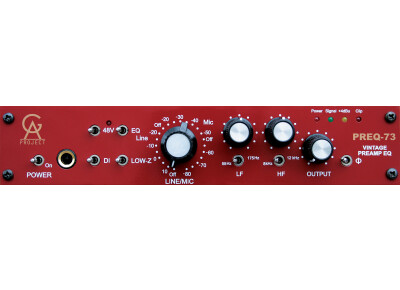

Golden Age Project PREQ-73

Name: PREQ-73
Brand: Golden Age Project
SKU: 226908

Ajouter ce produit à

Déposer un avis

Argus 253,33 €

Où acheter PREQ-73 ?

Moins

Meilleur prix neuf

Voir plus d’offres

Fiche technique

Créée le 06/11/2014

Vintage style electronics. No integrated circuits in the signal path.
Maximum gain on the mic input is 80 dB, enough to handle passive ribbon mics with quiet sound sources.
Gain range on the line input: -20 to +10 dB.
Switchable impedance on the mic input, 1200 or 300 Ohm, will change the tone of many mics.
Switchable phantom power and phase reverse.
A high-impedance instrument input for sound modules, electric guitar or bass.
A two band LF (+/-15 dB) and HF (+/-20 dB) shelving equalizer with two selectable frequencies for each band.
A simple but effective 3-step LED output level meter.
Output level control for fine gain adjustments and to make it possible to drive the input gain and equalizer stages harder.
Combo XLR/TRS input jacks and separate output XLR and TRS jacks for flexible connections. Will drive almost any load.
Insert jack (unbalanced, low level) for inserting effect units in the signal path. It can be located before or after the eq section.
Tantalum capacitors in the signal path.
The circuit board is prepared for the Carnhill mic and line input transformers.
Jumper selectable 600 Ohms output termination.
External high power power supply to avoid interaction with the audio circuits and transformers.
A solid build quality that will last many years of normal use.
