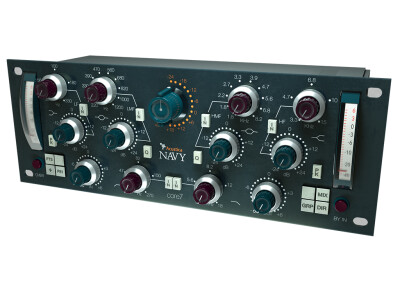

Acustica Audio Navy

• Fabricant : Acustica Audio
• Modèle : Navy
• Catégorie : Tranches de console logicielles
• Fiche créée le : 03/11/2015

Software channel strip based on a legendary class-A preamp with 4-band Equalizer, 2 filter section and equipped with as many as 6 preamps switchable (IN – OUT). first plug-in exploiting natively the new Core7 engine (zero latency)

BY-IN button
sets to bypass the plug-in or not-bypasses

OVER led
this led shows the peak clipping

PREAMP sections (*)
This plug-in allows to combine 6 different preamps (IN-OUT) to provide different choice.
These sections contribute an essential way to the "warmth" of the sound and the combinations

IN-PRE
- P73 button actives the P73 preamp
- P81 button actives the P81 preamp
- PLUS-PRE button enables the combination of P73 preamp and P81 preamp
- OFF-PRE button sets to bypass the PREMP or not-bypasses

OUT-PRE
-MIX button actives the MIX preamp
-GRP button actives the GRP preamp
-DIR button actives DIR
-OFF-PRE button sets to bypass the PREMP or not-bypasses

Input control
This knob controls the input level of the plug-in ( from -192 dB  to +6 dB)

Outup control
This knob controls the output level of the plug-in ( from -192 dB  to +6 dB)

Input trim
This knob sets the input level from -24dB to +24dB, and is used to control the signal level inside the plug-in.

Input / output meter
measure the input/output levels of the plug-in

LPF/HPF
these control determine the cut-off  frequency for the LOW-HIGH pass filter

-HP filter: the range is 27 Hz to 2.7 kHz

-LP filter: the range is 3.9 kHz to 18 kHz

Each band is controlled independently by an identical set of controls.

Gain control
Gain control provides boost and/or cut amount depending on which band you are applying it. You have a -24dB/+24dB cut/boost  for each band.

Frequency control
Frequency ranges differ for the bands to accommodate maximum flexibility.
Available values are:

Low Band: 33Hz, 56Hz, 100Hz, 180Hz, 330Hz.

Low-Mid Band: 220 Hz, 270Hz, 330 Hz, 390 Hz, 470 Hz, 560 Hz, 680 Hz  820 Hz, 1 kHz, 1.2 kHz..

Low-High Band : 1.5 kHz, 1.8 kHz, 2.2 kHZ, 2.7 kHz, 3.3 kHz, 3.9 kHz, 4.7 kHz, 5.6 kHz, 6.8 kHz, 8.2 kHz.

High Band: 3.3 kHz, 4.7 kHz, 280 Hz, 6.8 kHz, 10 kHz, 15 kHz.

Q/PK button
The PK/Q buttons control the sharpness of the peak or dip for each band.
There is two Q values:  High Q (peak with narrowQ) or Low Q (peak with largeQ) selection

IN button
enables or bypasses each section

VST/AU 64 bits AAX 64 bits for Mac OS X and Windows
