Gotharman's Fuzion

• Fabricant : Gotharman's
• Modèle : Fuzion
• Catégorie : Workstations
• Fiche créée le : 05/01/2015

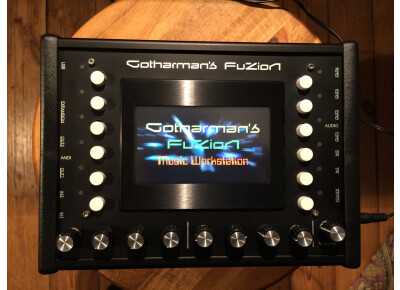

The Gotharman's Fuzion is a multitrack, polyphonic portable music workstation with built-in synthesizer, sequencer, sampler and effects.

1024 user re-writable presets (not all presets are pre-programmed).

Each preset holds:

• -8 synthesizers.
• -1 sequencer pattern of 16 linear tracks, up to 128 bars long.
• -Effects.

Sequencer:

• -Number of tracks: 16. Each track can be set to internal or external control.
• -Maximum number of bars per track: 128 (independently adjustable for each track with 1/32 bar resolution).
• -8.000 events per preset.
• -Recording methods: Real time, step time, grid.
• -Tempo: 24-300 bpm.
• -Real time note editing, using bars: Tone, velocity, length, position.
• -Real time Event editing, using bars: Event dependent, time dependent. *Not yet implemented.
• -Note Randomizers: 1 per track, with probability, velocity and time adjustments.
• -Swing: Can be generated using a number of sources.
• -Note Quantization: Adjustable per track on the fly to 1/32, 1/24, 1/16, 1/12, 1/8, 1/6, ¼.

Synthesizer:

• -Polyphony: 8 notes.
• -Number of synthesizers: 8.
• -Oscillator types: Waveform (morphable between sine, triangle, sawtooth, pulse and feedback waveforms), noise, sampling, percussion (multiple sinewaves and noise mixed together and detuned for fat percussion sounds).
• -Filters: 2 per voice, LPF, BPF, BPF8, HPF, BEF, ADD, BASS, LOFI, LPF2, BPF2, BPF8-2, HPF2, BEF2, ADD2, BASS2 and LOFI2.
• -Envelopes: 3 per voice. ADHSRR type – attack, decay, hold, sustain, repeats, release.
• -LFO’s: 2 per voice. Waveforms: tri, pulse, FM.
• -Random generator: 1 per voice.
• -FAT: Adds up to 3 extra layers of the sound, with adjustable phaze between these.
• -MIDI channel and note range are adjustable indenpendently for each synth, so these can be splitted, layered or be multi-timbral.

Sampler:

• -Total recording time: 300 minutes.
• -Single sampling max length: 200 minutes.
• -Recording sources: Analog input 1 and 2, USB import of .wav files.

- Effects

-Compatible with most* Little deFormer expansion boxes, and some new to come…

* Not compatible with the forthcoming Audio Output expansion, since Fuzion does not have the audio port.

Not compatible with the forthcoming USB transfer expansion, since Fuzion already has this functionality.

USB:

• -Import/export samples as .wav files.
• -Import/export presets as .fzp files.
• -Backup/restore of Fuzion’s user memory.
• -Updating of firmware.

-2 analog inputs.

-4 analog outputs.

Audio system:

-Inputs and outputs: 24 bit, 44.1 KHz Cirrus Logic high end ADC/DAC.

-Internal: 32 bit, 44.1 KHz.

-Sampler: 16 bit, 44.1 KHz.

-2 x MIDI IN.

-2 x MIDI OUT.

-More MIDI in’s and out’s will be available through an expansion box.

-Industrial grade 4.3" colour TFT, made in germany.

Size: 23 x 16 x 6 cm

Weight: 1.3 KG
