Electro-Harmonix V256 pédale vocoder autotune robot... voix

Description

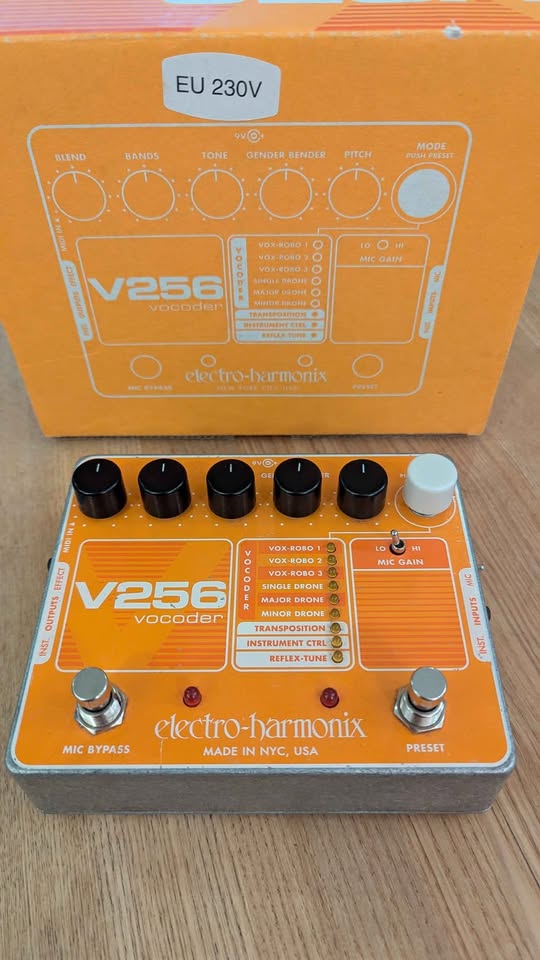

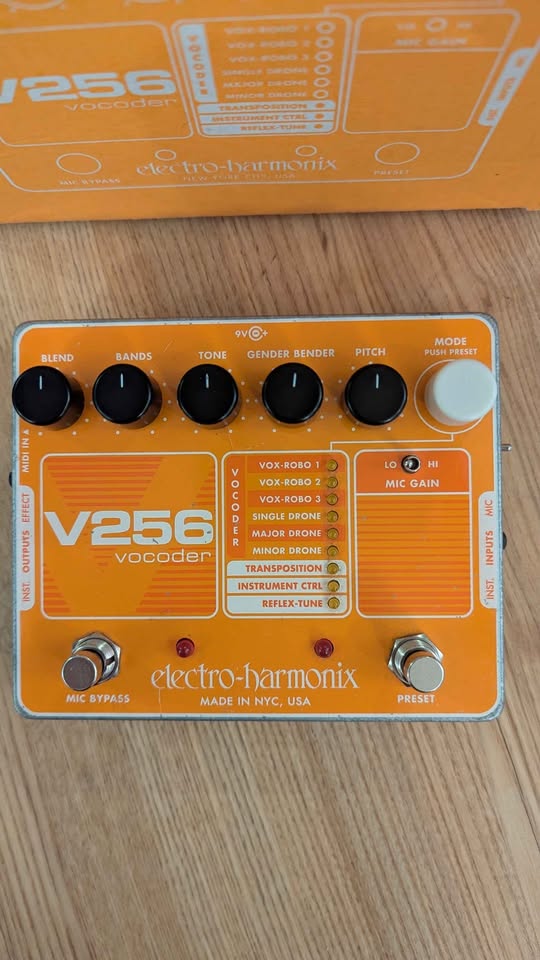

Le V256 est un vocoder au format pédale. Il offre 9 modes, des entrées et sorties instrument et micro, ainsi qu'une entrée MIDI.

Visible sur Toulouse ou pour un envoi

General Specs

Controls: Blend, Bands (8 to 256), Tone, Gender Bender, Pitch, Mode/Preset

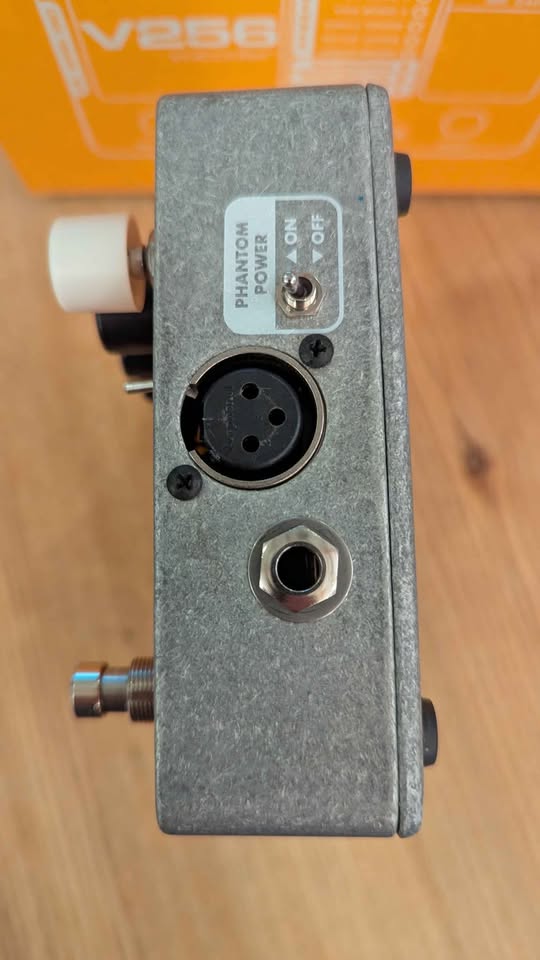

Switch: Mic Gain (Lo/Hi), Phantom Power (On/Off)
Footswitches: Mic Bypass, Preset
Mode: 9
Vox-Robo: Vox-Robo 1, Vox-Robo 2, Vox-Robo 3
Drone: Single Drone, Major Drone, Minor Drone
Vocal Transposition: Transposition, Instrument CTRL, Reflex-Tune

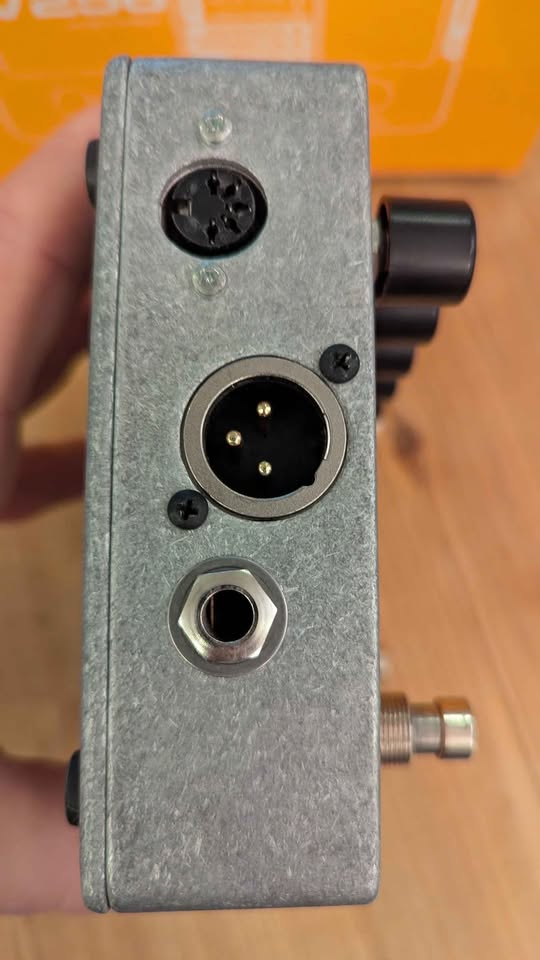

Connectors:
Inputs: Inst. (1/4"), Mic (XLR)
Outputs: Inst. (1/4"), Effect (XLR)
MIDI In
9V

Technical Specs

Processing:
A/D & D/A Conversion Sample Rate = 36 kHz
A/D & D/A Conversion Bit Resolution = 24 bits
Impedance:
Inst Input: 2.2 MΩ
Mic Input: 10 KΩ
Effect Output: 700 Ω
Inst Output: 700 Ω
Mic Pre-Amp Gain:
Lo = 15 db; Hi = 25 dB (XLR out into High Z load)
Lo = 4.5 dB; Hi = 15 dB (XLR out into 600 Ω load)
Power: 9.6DC200 AC Adapter
Voltage: 9V DC
Polarity: Center Negative
Current Draw = 200 mA at 9V DC
Dimensions: 146 x 121 x 64 mm / 4.75 x 5.75 x 2.5 inch
