Acustica Audio White2

• Fabricant : Acustica Audio
• Modèle : White2
• Catégorie : Egaliseurs graphiques logiciels
• Fiche créée le : 02/09/2016

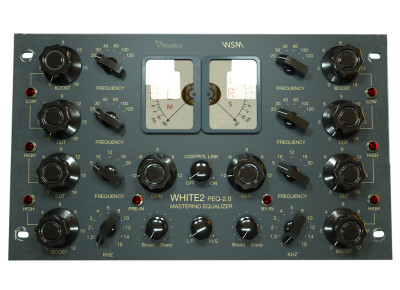

Updated version of the emulation of the WSM PEQ-2.0, a Pultec-type solid state EQ, with dual-mono channel topology designed in Italy, for mastering purposes. Now with Core8 engine.

carefully re-sampled and all bands are more responsive than the previous version.

BY-IN
Pressing this button to power up the unit.

PRE-IN
Pressing this button to activate the PREAMP of the plug-in.

CONTROL-LINK
This switch links the controls of left and right channels.

BROAD/SHARP
Similar to the “Q” control or better the BANDWIDTH. This knob is used to select the Q shape.

OUTPUT GAIN
Gain control sets the OUTPUT LEVEL of the plug-in. You have a -12dB/+12dB.

OUTPUT L-R meters
the L(M)-R(S) meter measure the output level of the plug-in

L/R - M/S
This knob allows to choose the LEFT-RIGHT or the MID-SIDE configuration of the plug-in.
So Each MONO-channels can be controlled independently or dependently by an identical set of controls;

First LOW FREQUENCY band has been enhanced by being split, so now, unlike with most P-style units, you can use the controls of the BOOST and CUT simultaneously on multiple frequencies. This provides greater flexibility and many more possibilities for sound-shaping the audio.

• BOOST knob goes from 0 to 18 dB and controls a low

• CUT knob goes from 0 to -18 dB using the Low shelf filter

Low Frequency sets the cut-off frequency for low frequency BOOST and CUT controls. The frequency settings for each controls are 20 Hz, 30Hz, 40Hz, 60Hz, 100Hz, 120Hz.

Second HIGH FREQUENCY section is made up of two INDEPENDENT subsections, the BOOST and the CUT sections.

1. HIGH CUT SECTION

This control allow you to CUT from 0dB to 18dB independently of the other High section.
The CUT knob will attenuate the signal from 0 to 18 dB.
High-CUT Frequency sets the cut-off frequency for high frequency CUT control. The frequency settings are 5kHz, 10kHz, 12Hz, 16Hz, 20kHz.

2. HIGH BOOST SECTION

This BOOST section allows to control the gain for a boost and the values range goes from 0dB to 12dB.
High-BOOST Frequency sets the cut-off frequency for the high frequency BOOST control and it goes from 1kHz to 16kHz;
This section has a BROAD/SHARP control to sets the Q of the BOOST peak filter.
