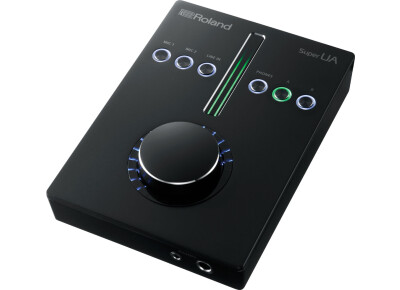

Roland Super UA

• Fabricant : Roland
• Modèle : Super UA
• Catégorie : Interfaces audio USB
• Fiche créée le : 22/01/2015

audio interface for Mac and PC. With native support for both 1-bit DSD and 32-bit PCM playback

• Audiophile sound quality with 1-bit DSD and 32-bit PCM playback
• Four inputs and four outputs with XLR and 1/4-inch connectors
• Die-cast metal construction with simple, solid controls and smooth metering
• Includes 1/4-inch and 1/8-inch jacks for headphones
• Flexible design allows for mobile use without having to disconnect studio mics and monitors
• Large multi-function knob and recessed, illuminated buttons provide quick access to input and output levels
• Clean, quiet operation with stunning clarity and dynamic range
• Low-latency ASIO and Core Audio drivers

Number of Audio Playback ChannelsPCM format: 6 channels, 2 channels
DSD format: 2 channelsNumber of Audio Record ChannelsPCM format: 2 channels
* You cannot record in DSD format.Signal Processing[PCM format]
PC interface: 32 bits
DA Conversion: 1 bit, 32 bits
AD Conversion: 24 bit
* When "D/A Conversion = 1 bit" is valid, DA conversion operates on 1 bit.

[DSD format]
PC interface: 1 bit
DA Conversion: 1 bitSampling Rate[PCM format]
PC interface: 352.8 kHz, 192 kHz, 176.4 kHz, 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
DA Conversion: 3.072 MHz, 2.8224 MHz, 192 kHz, 176.4 kHz
AD Conversion: 192 kHz, 176.4 kHz
* If the sampling rate is 352.8 kHz, the number of channels is limited to two channels, and playback is possible only via ASIO/Core Audio.
* When "D/A Conversion = 1 bit" is valid, DA conversion operates on 3.072 MHz or 2.8224 MHz.

[DSD format]
PC interface: 5.6448 MHz, 2.8224 MHz *
DA Conversion: 2.8224 MHz
* 5.6448 MHz DSD data is down-converted to 2.8224 MHz for playback.DSD Format Playback MethodDoP version 1.0InterfaceHi-Speed USBConnectors[Main unit]
PHONES jack: Stereo miniature phone type, Stereo 1/4-inch phone type
LINE OUT A jack: Stereo 1/4-inch phone type, balanced
I/O connector (Breakout Box)
USB port: USB Type micro B
DC IN connector

[Breakout box]
LINE OUT B jack: XLR type, balanced
MIC 1 jack, MIC 2 jack: XLR type, balanced, phantom power (DC 48 V, 10 mA Max)
* Current value per channel.ControllerMIC 1 button, MIC 2 button, LINE IN button, PHONES button, A button, B button
Volume dial
IndicatorLevel indicator
Volume indicator
48V indicatorCharacteristicsNominal Input LevelNominal Input LevelLINE IN jack (1/4-inch TRS phone type): -28– +4dBu
MIC 1 jack, MIC 2 jack (XLR type): -60– -2 dBuNominal Output LevelLINE OUT A jack (balanced): +4 dBu
LINE OUT B jack (balanced): +4 dBu
PHONES jack: -2 dBuMaximum Output LevelLINE OUT A jack (balanced): +22 dBu
LINE OUT B jack (balanced): +22 dBu
PHONES jack: +16 dBuPHONES Maximum Output Power*** mW + *** mW (L + R, 40 ohms)
** mW + ** mW (L + R, 300 ohms)Headroom18 dBInput ImpedanceLINE IN jack (1/4-inch TRS phone type): 12 k ohms (balanced)
MIC 1 jack, MIC 2 jack (XLR type): 6.8 k ohms (balanced)Output ImpedanceLINE OUT A jack: 600 ohms (balanced)
LINE OUT B jack: 600 ohms (balanced)
PHONES jack: 30 ohmsFrequency Response:192.0 kHz: 20 Hz–60 kHz (+0/-1 dB), 20 Hz–90 kHz (+0/-5 dB)
176.4 kHz: 20 Hz–60 kHz (+0/-1 dB), 20 Hz–80 kHz (+0/-5 dB)
96.0 kHz: 20 Hz–44 kHz (+0/-0.5 dB)
88.2 kHz: 20 Hz–40 kHz (+0/-0.5 dB)
48.0 kHz: 20 Hz–22 kHz (+0/-0.5 dB)
44.1 kHz: 20 Hz–20 kHz (+0/-0.5 dB)Residual Noise LevelLINE IN to LINE OUT A: -96 dBu typ. (SENS: min., 1 k ohms terminated, IHF-A)
* Internal Direct Monitor Mixer setting
INPUT level: 0 dBDynamic Range[AD block]
LINE IN: 112 dB typ. (SENS: min.)
MIC 1, MIC 2: 111 dB typ. (SENS: min.)

[DA block]
LINE OUT A, LINE OUT B: 118 dB typ.
