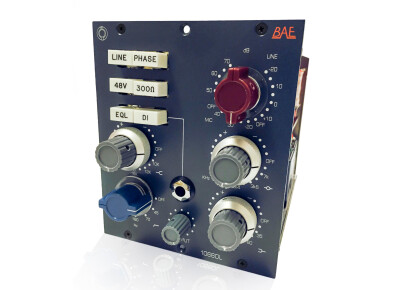

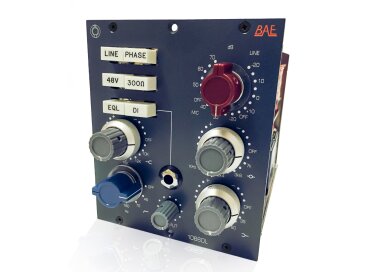

BAE Audio 1066DL

• Fabricant : BAE Audio
• Modèle : 1066DL
• Catégorie : Préamplis à transistors
• Fiche créée le : 21/01/2016

500 Series 1066-based preamp which features the same mic-line pre-amplification stage as the 1073, but features different frequency selections in its EQ

Frequency Response
10Hz to -3dB at 55kHz

3 Band Equaliser
HF:+/-16dB fixed frequency shelving at 10kHz,12kHz, 16kHz, 20kHz and 24kHz
LF: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
MF: +/-16dB peaking with switchable selectable centre frequencies of 700Hz, 1.2kHz, 2.4kHz, 3kHz, 7kHz

High Pass Filter
45Hz, 70Hz, 160Hz & 360Hz

Mic Input Impedance
≈1200/300 ohms

Line Input Impedance
10k ohms

DI Input Impedance
≈150k ohms

Output Impedance
65 ohms

Common Mode Rejection Ratio
100dB min @ 60Hz

Maximum Output Level
+27.4 dBu @ 600Ω

Power Requirements
115/230 VAC, 28W

Gain dB
0 to 80 dB

Equivalent Input Noise
-110 dBu; Unweighted 300kHz Bandwidth

Weight
6 LBS / 2.72 KG

Dimensions in Inches
45 mm W x 8.75 inches H x 10.5 inches D

Distribué par Studio Dealers
