Fiche technique
- Fabricant : Yamaha
- Modèle : MT120S
- Catégorie : Studios intégrés analogiques
- Autres dénominations : mt 120s, mt120 s

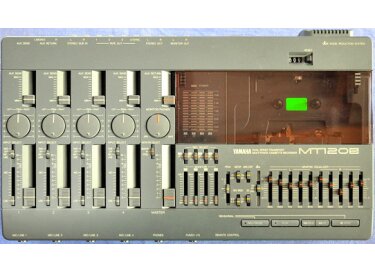

Yamaha MT120S
• 4-track simultaneous record.
• Built-in graphic equaliser.
• Input Impedance (all inputs): 10 kOhm
• Input Level: -56 dB (Gain Max) to +10 dB (Gain Min)
• Output Impedance (all line outputs): 1kOhm
• Output Level (all line outputs): -10 dB
• Phones Output: Load impedance 8-40 Ohms, max output level 45 mW per channel
• Tape Speed: 9.5 cm/s, 4.8 cm/s
• Varispeed: +/- 10% approx.
• Wow and Flutter: less than 0.12% WRMS (4.8 cm/s)
• Frequency Response: 40Hz-18kHz (dbx out, 9.5 cm/s +3/-5 dB) 40Hz-13kHz (dbx out, 4.8 cm/s, +3/-5 dB)
• Distortion: 1.0% (400 Hz, -13 dB Rec level, dbx on)
• S/N ratio (3% THD level): 85dB (dbx on, IHF-A)
• Channel separation: Better than 65dB at 1kHz
• Erasure ratio: Better than 70dB at 1kHz
• Record/play head type: 4-channel Permalloy
• Erase head type: 4-channel Ferrite
• Tape type: Chrome (70 microsec EQ)
• Dimensions: 410 x 80.8 x 237 mm
• Weight: 2.6 kg
Distribué par Yamaha Music Europe
